NSK N1015MR
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
N1015MR

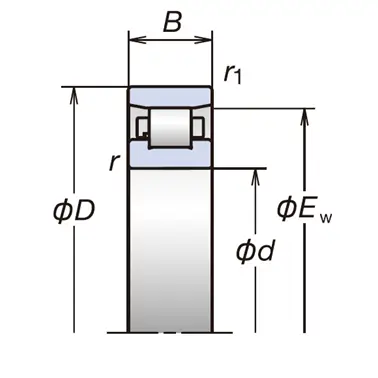

Boundary Dimensions
d
75
mm
Bore diameter
D
115
mm
Outside diameter
B
20
mm
Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Cr
69.0
kN
Basic Dynamic Load Rating
C0r
74.5
kN
Basic Static Load Rating
Speeds
Grease
8500
min-1
Limiting Speed
Oil (Oil-air)
13700
min-1
Limiting Speed
Dimensions
Ew
105
mm
Roller Circumscribed Circle Diameters

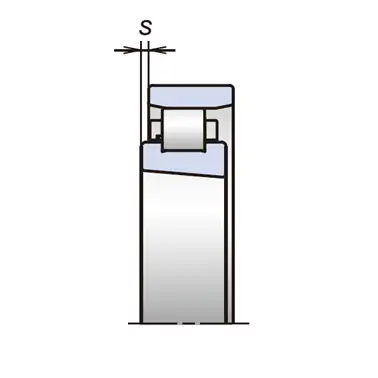

s
2.7
mm

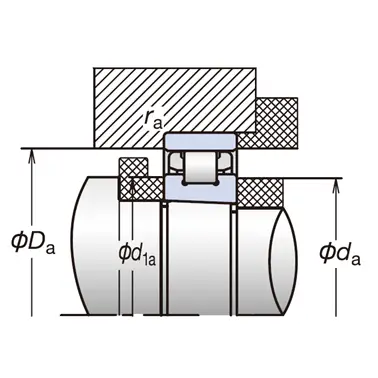

Abutment and Fillet Dimensions
da(min.)
81.5
mm
Diameter of Shaft Abutment
d1a(min.)
83
mm
Diameter of Shaft Abutment
Da(min.)
106
mm
Diameter of Housing Abutment
Da(max.)
110
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
