NSK N1019BMR1
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
N1019BMR1

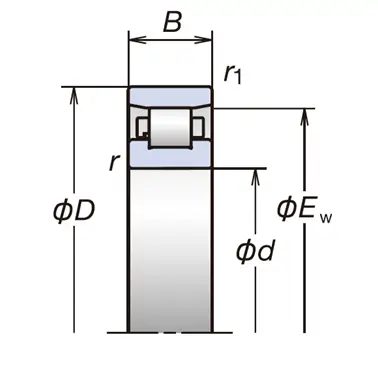

Boundary Dimensions
d
95
mm
Bore diameter
D
145
mm
Outside diameter
B
24
mm
Width
r(min.)
1.5
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Cr
95
kN
Basic Dynamic Load Rating
C0r
114
kN
Basic Static Load Rating
Speeds
Grease
6700
min-1
Limiting Speed
Oil (Oil-air)
9200
min-1
Limiting Speed
Dimensions
Ew
132
mm
Roller Circumscribed Circle Diameters

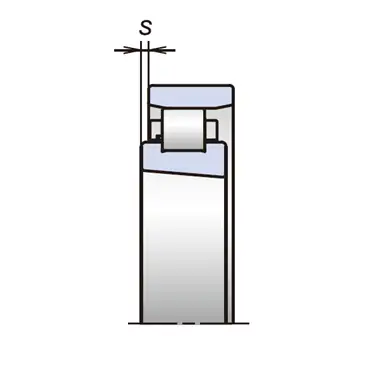

s
1.6
mm

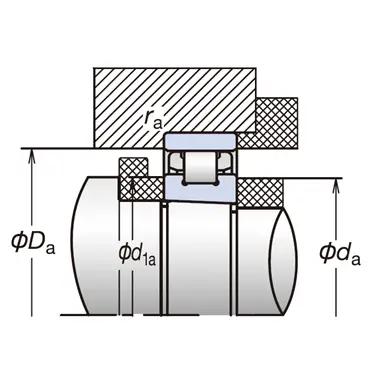

Abutment and Fillet Dimensions
da(min.)
103
mm
Diameter of Shaft Abutment
d1a(min.)
105
mm
Diameter of Shaft Abutment
Da(min.)
134
mm
Diameter of Housing Abutment
Da(max.)
138.5
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
