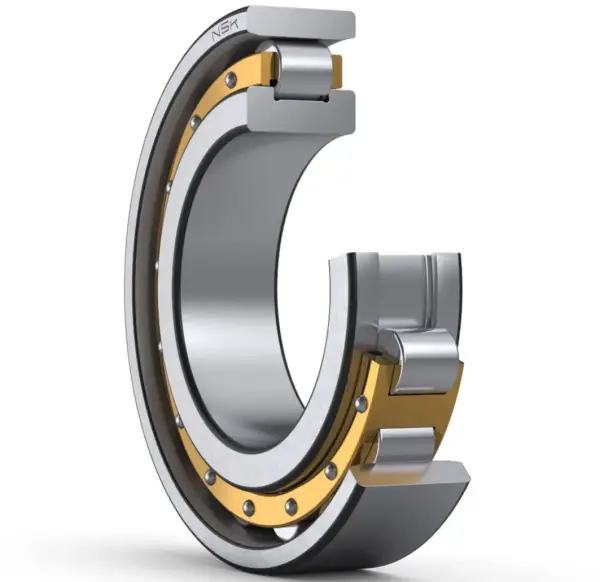

NSK N209M
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
N209M

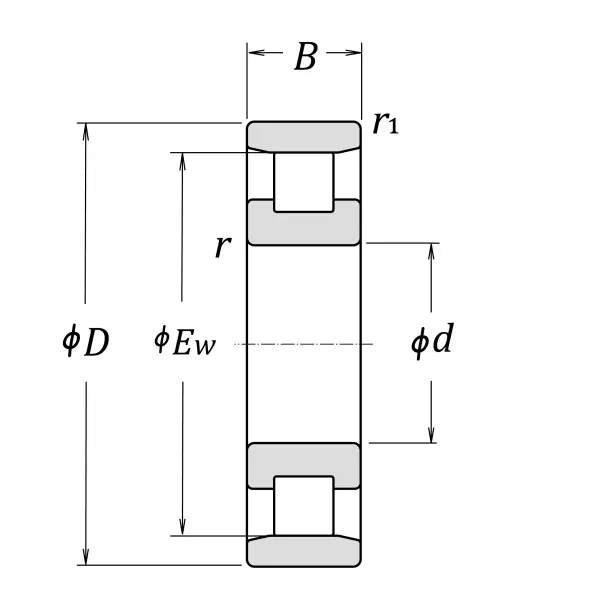

Boundary Dimensions
d
45
mm
Bore diameter
D
85
mm
Outside diameter
B
19
mm
Width
EW
75
mm
Raceway diameter of outer ring
r (min.)
1.1
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
56500
N
Basic dynamic load rating
C0r
47000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
9000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
7500
min-1
Grease lubrication
Oil (Oil-bath)
9000
min-1
Oil-bath lubrication

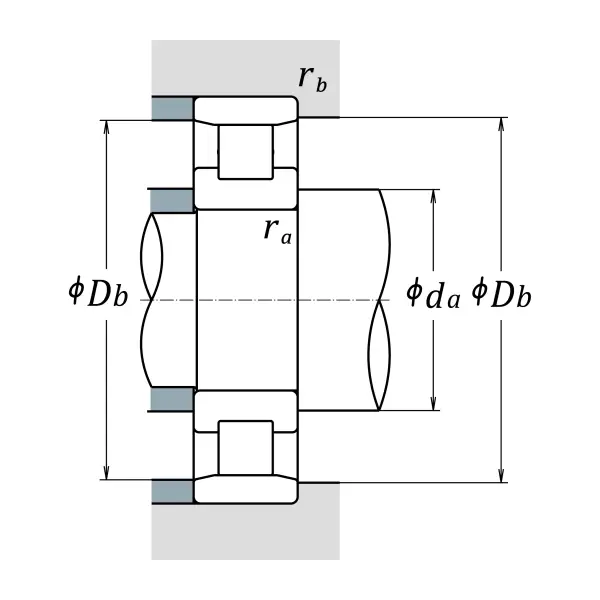

da (min.)
51.5
mm
Diameter of shaft abutment
Db (min.)
77
mm
Diameter of housing abutment
Db (max.)
78.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.476
kg
Mass approx.
