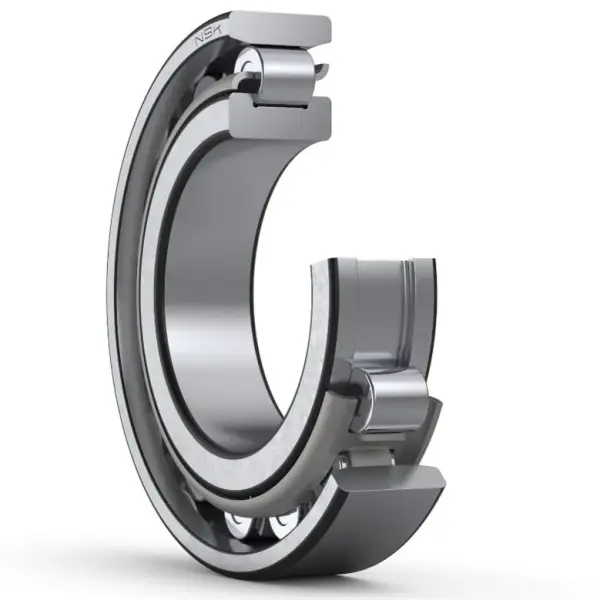

NSK N222W
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
N222W
Boundary Dimensions
d
110
mm
Bore diameter
D
200
mm
Outside diameter
B
38
mm
Width
EW
178.5
mm
Raceway diameter of outer ring
r (min.)
2.1
mm
Chamfer dimension
r1 (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
281000
N
Basic dynamic load rating
C0r
272000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
4300
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
2600
min-1
Grease lubrication
Oil (Oil-bath)
3000
min-1
Oil-bath lubrication
da (min.)
121
mm
Diameter of shaft abutment
Db (min.)
182
mm
Diameter of housing abutment
Db (max.)
189
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
rb (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
4.65
kg
Mass approx.
