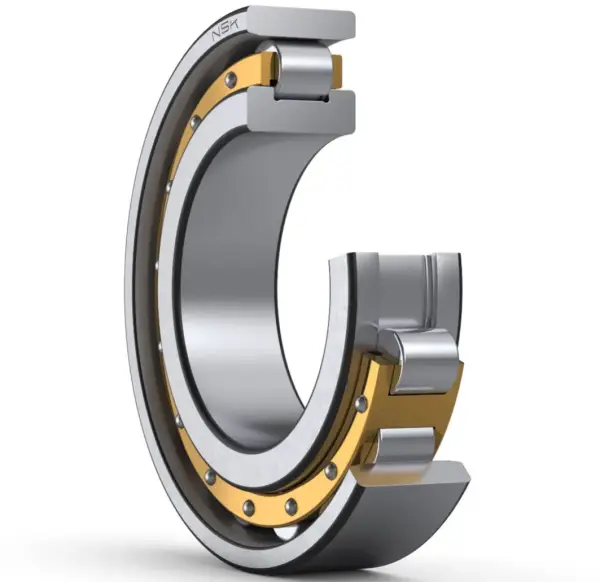

NSK N338M
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
N338M

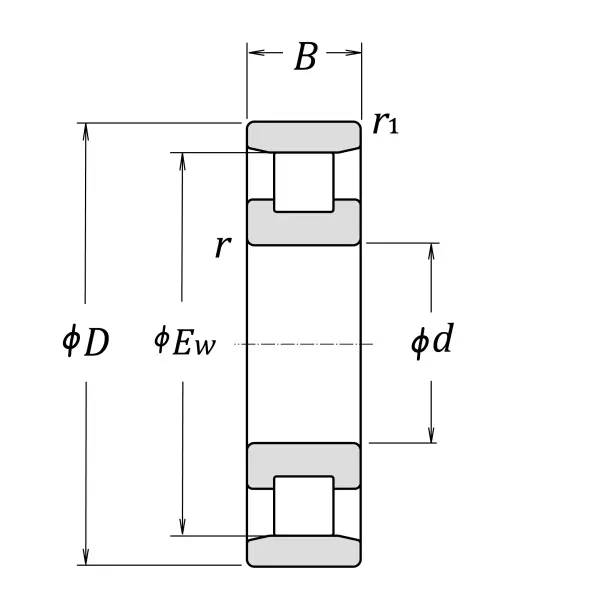

Boundary Dimensions
d
190
mm
Bore diameter
D
400
mm
Outside diameter
B
78
mm
Width
EW
345
mm
Raceway diameter of outer ring
r (min.)
5
mm
Chamfer dimension
r1 (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Cr
1200000
N
Basic dynamic load rating
C0r
1260000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
1600
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1700
min-1
Oil-bath lubrication
da (min.)
210
mm
Diameter of shaft abutment
Db (min.)
352
mm
Diameter of housing abutment
Db (max.)
380
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
rb (max.)
4
mm
Radius of shaft or housing fillet

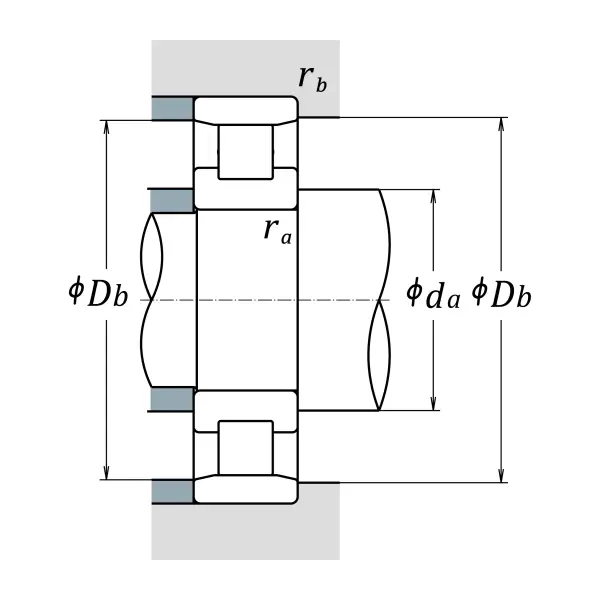

Abutment and Fillet Dimensions
Mass approx.
48.7
kg
Mass approx.
