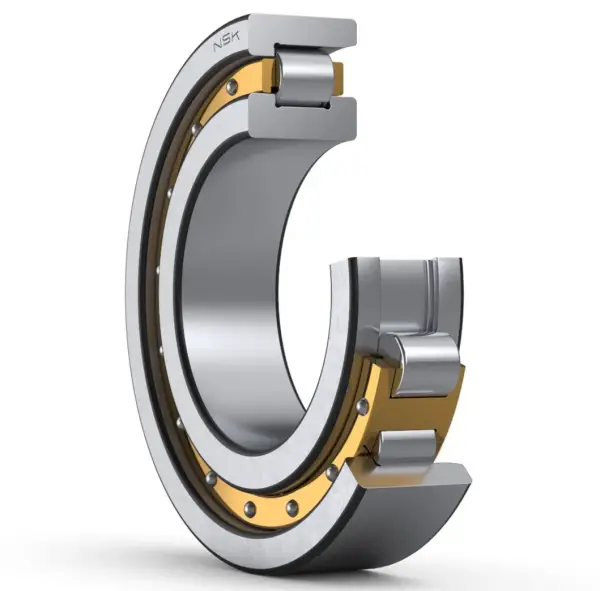

NSK NF1009
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NF1009
Boundary Dimensions
d
45
mm
Bore diameter
D
75
mm
Outside diameter
B
16
mm
Width
EW
67.5
mm
Raceway diameter of outer ring
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
40000
N
Basic dynamic load rating
C0r
35500
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
9500
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
9000
min-1
Grease lubrication
Oil (Oil-bath)
11000
min-1
Oil-bath lubrication
da (min.)
50
mm
Diameter of shaft abutment
Db (min.)
69
mm
Diameter of housing abutment
Da (max.)
70
mm
Diameter of housing abutment
Db (max.)
71
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
rb (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.291
kg
Mass approx.
