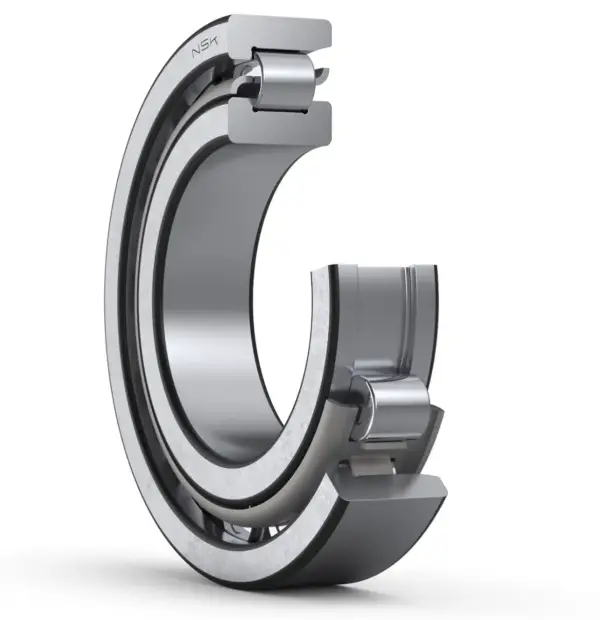

NSK NF214W
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NF214W
Boundary Dimensions
d
70
mm
Bore diameter
D
125
mm
Outside diameter
B
24
mm
Width
EW
110.5
mm
Raceway diameter of outer ring
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
103000
N
Basic dynamic load rating
C0r
95000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
6300
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
4000
min-1
Grease lubrication
Oil (Oil-bath)
5000
min-1
Oil-bath lubrication
da (min.)
78
mm
Diameter of shaft abutment
Db (min.)
113
mm
Diameter of housing abutment
Da (max.)
117
mm
Diameter of housing abutment
Db (max.)
117
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
rb (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
1.18
kg
Mass approx.
