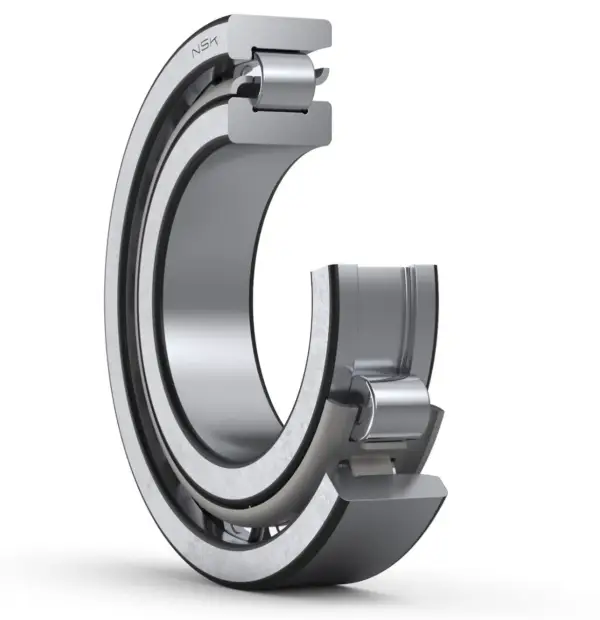

NSK NF226W
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NF226W
Boundary Dimensions
d
130
mm
Bore diameter
D
230
mm
Outside diameter
B
40
mm
Width
EW
204
mm
Raceway diameter of outer ring
r (min.)
3
mm
Chamfer dimension
r1 (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
335000
N
Basic dynamic load rating
C0r
340000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
3800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
2600
min-1
Oil-bath lubrication
da (min.)
143
mm
Diameter of shaft abutment
Db (min.)
209
mm
Diameter of housing abutment
Da (max.)
217
mm
Diameter of housing abutment
Db (max.)
217
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
rb (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
6.7
kg
Mass approx.
