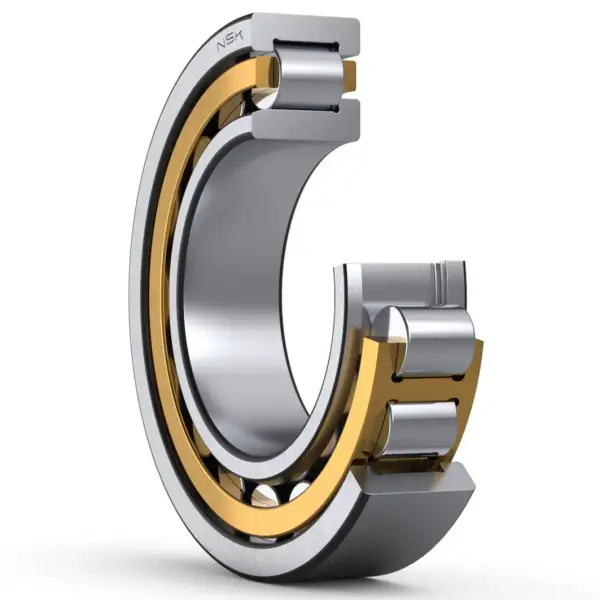

NSK NJ324EM
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NJ324EM
Boundary Dimensions
d
120
mm
Bore diameter
D
260
mm
Outside diameter
B
55
mm
Width
FW
154
mm
Raceway diameter of inner ring
r (min.)
3
mm
Chamfer dimension
r1 (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
650000
N
Basic dynamic load rating
C0r
610000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
4800
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
2800
min-1
Oil-bath lubrication

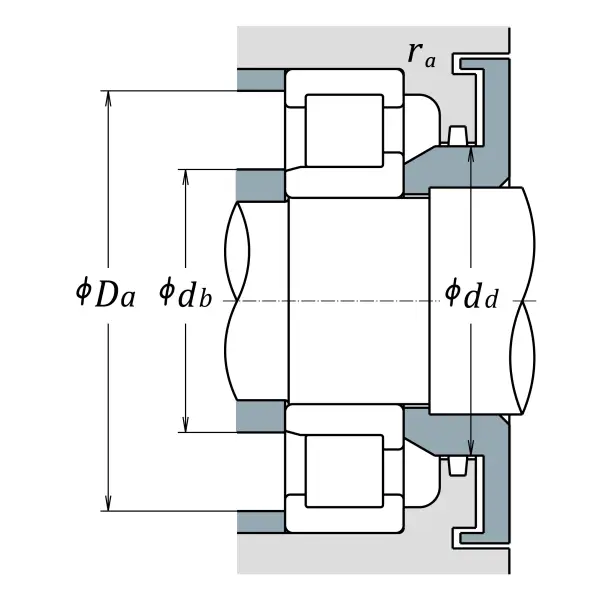

db (min.)
133
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
150
mm
Diameter of shaft / spacer sleeve abutment
dd (min.)
171
mm
Diameter of shaft abutment
Da (max.)
247
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
15.2
kg
Mass approx.
