NSK NN3007K
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3007K

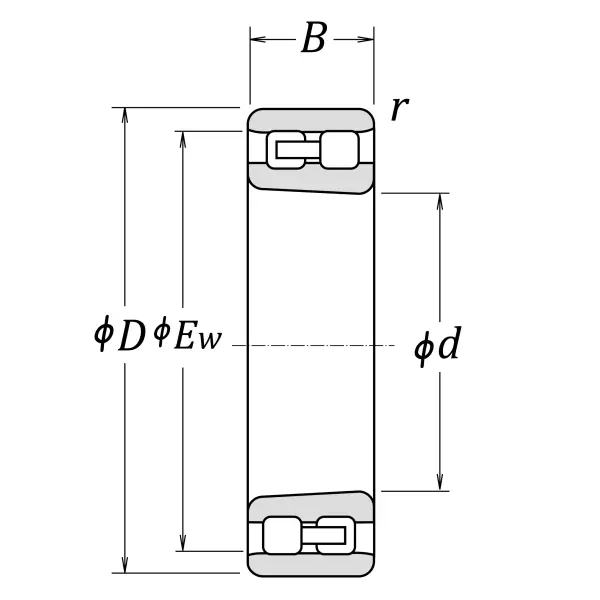

Boundary Dimensions
d
35
mm
Bore diameter
D
62
mm
Outside diameter
B
20
mm
Width
EW
55
mm
Raceway diameter of outer ring
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
48500
N
Basic dynamic load rating
C0r
50000
N
Basic static load rating
Speeds
Grease
10000
min-1
Grease lubrication
Oil (Oil-bath)
12000
min-1
Oil-bath lubrication
da (min.)
40
mm
Diameter of shaft abutment
d1a (min.)
41
mm
Diameter of spacer sleeve abutment
Da (min.)
56
mm
Diameter of housing abutment
Da (max.)
57
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.258
kg
Mass approx.
