NSK NN3009K
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NN3009K

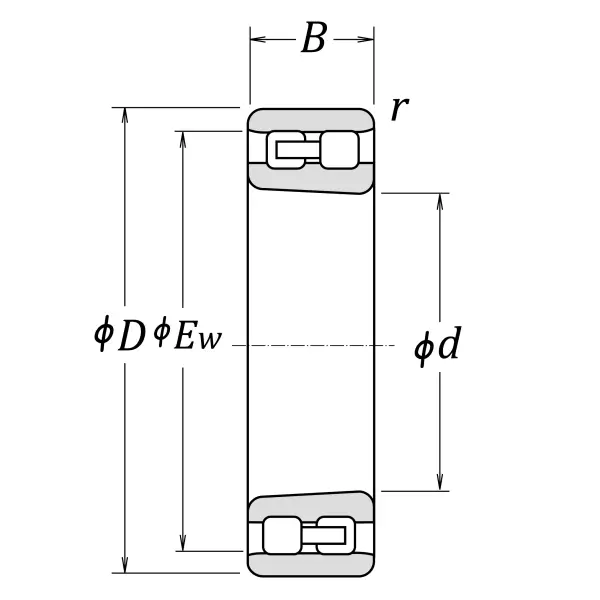

Boundary Dimensions
d
45
mm
Bore diameter
D
75
mm
Outside diameter
B
23
mm
Width
EW
67.5
mm
Raceway diameter of outer ring
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
63500
N
Basic dynamic load rating
C0r
68500
N
Basic static load rating
Speeds
Grease
8500
min-1
Grease lubrication
Oil (Oil-bath)
10000
min-1
Oil-bath lubrication

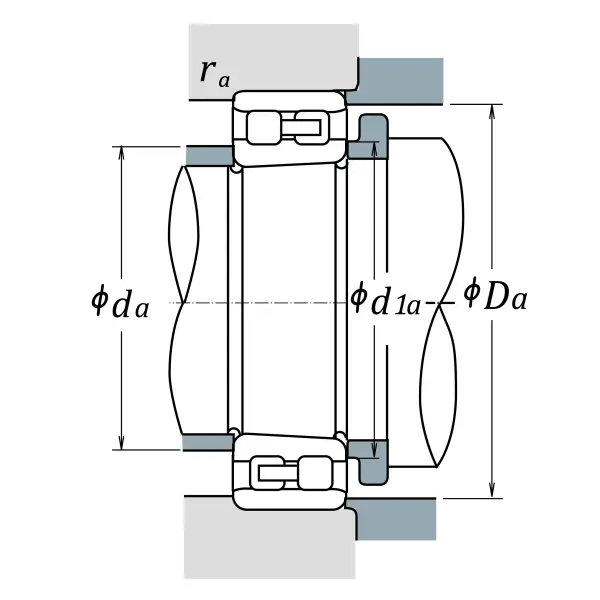

da (min.)
50
mm
Diameter of shaft abutment
d1a (min.)
51
mm
Diameter of spacer sleeve abutment
Da (min.)
69
mm
Diameter of housing abutment
Da (max.)
70
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.407
kg
Mass approx.
