NSK NN3013
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3013

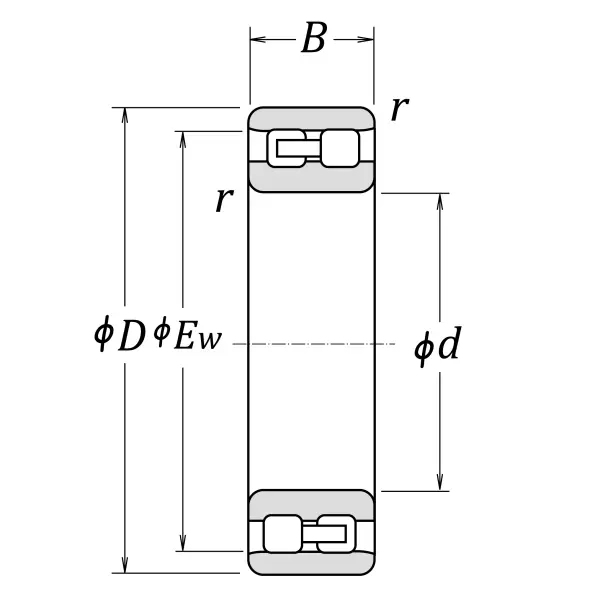

Boundary Dimensions
d
65
mm
Bore diameter
D
100
mm
Outside diameter
B
26
mm
Width
EW
91
mm
Raceway diameter of outer ring
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
95000
N
Basic dynamic load rating
C0r
116000
N
Basic static load rating
Speeds
Grease
6000
min-1
Grease lubrication
Oil (Oil-bath)
7100
min-1
Oil-bath lubrication
da (min.)
71.5
mm
Diameter of shaft abutment
d1a (min.)
72
mm
Diameter of spacer sleeve abutment
Da (min.)
93
mm
Diameter of housing abutment
Da (max.)
93.5
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.746
kg
Mass approx.
