NSK NN3014K
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3014K

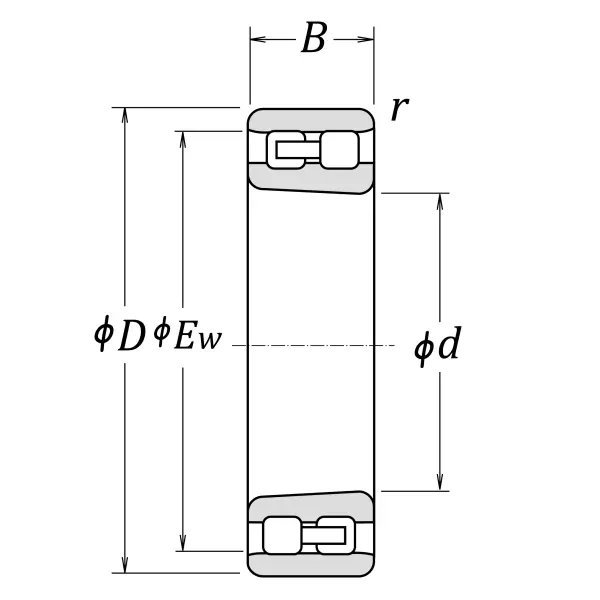

Boundary Dimensions
d
70
mm
Bore diameter
D
110
mm
Outside diameter
B
30
mm
Width
EW
100
mm
Raceway diameter of outer ring
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
120000
N
Basic dynamic load rating
C0r
148000
N
Basic static load rating
Speeds
Grease
5600
min-1
Grease lubrication
Oil (Oil-bath)
6700
min-1
Oil-bath lubrication
da (min.)
76.5
mm
Diameter of shaft abutment
d1a (min.)
77
mm
Diameter of spacer sleeve abutment
Da (min.)
102
mm
Diameter of housing abutment
Da (max.)
103.5
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet

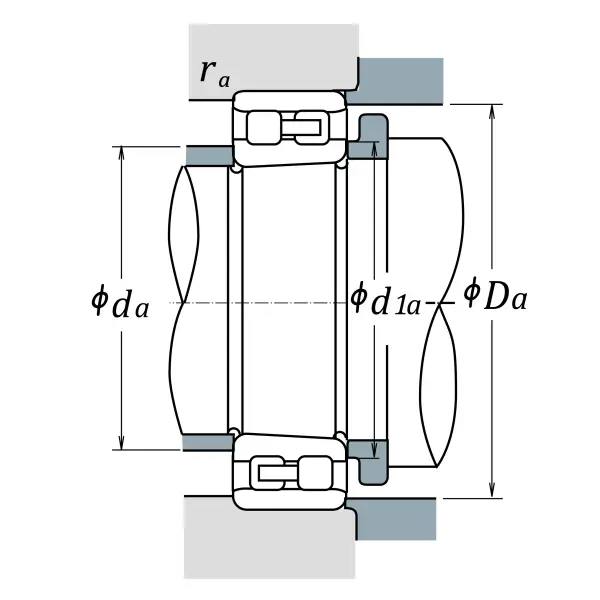

Abutment and Fillet Dimensions
Mass approx.
1.07
kg
Mass approx.
