NSK NN3016
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3016
Boundary Dimensions
d
80
mm
Bore diameter
D
125
mm
Outside diameter
B
34
mm
Width
EW
113
mm
Raceway diameter of outer ring
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
147000
N
Basic dynamic load rating
C0r
186000
N
Basic static load rating
Speeds
Grease
4800
min-1
Grease lubrication
Oil (Oil-bath)
6000
min-1
Oil-bath lubrication

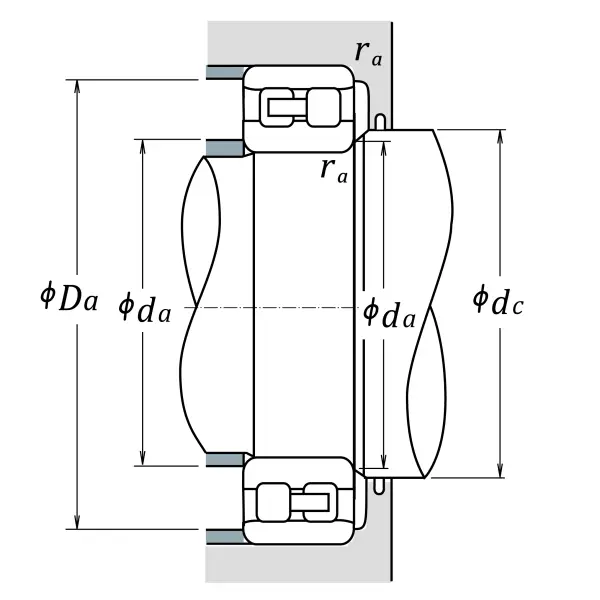

da (min.)
86.5
mm
Diameter of shaft abutment
d1a (min.)
87
mm
Diameter of spacer sleeve abutment
Da (min.)
115
mm
Diameter of housing abutment
Da (max.)
118.5
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
1.55
kg
Mass approx.
