NSK NN3017
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NN3017

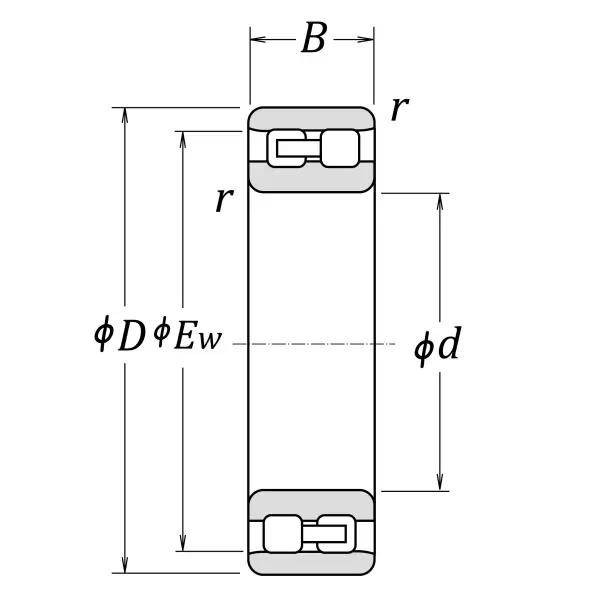

Boundary Dimensions
d
85
mm
Bore diameter
D
130
mm
Outside diameter
B
34
mm
Width
EW
118
mm
Raceway diameter of outer ring
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
154000
N
Basic dynamic load rating
C0r
201000
N
Basic static load rating
Speeds
Grease
4500
min-1
Grease lubrication
Oil (Oil-bath)
5600
min-1
Oil-bath lubrication

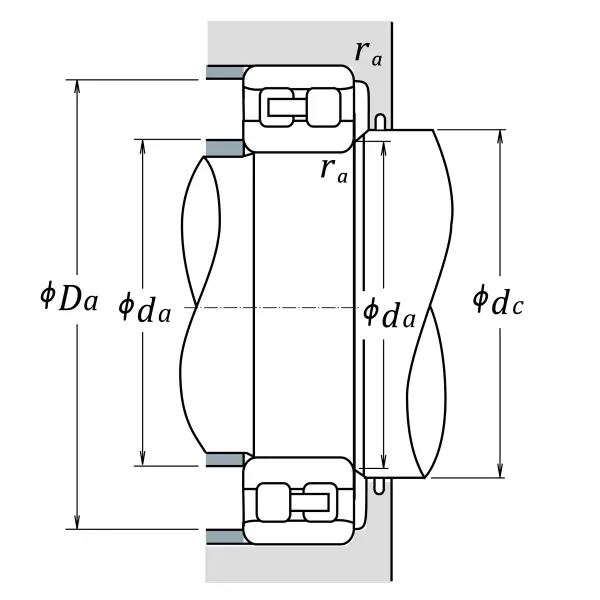

da (min.)
91.5
mm
Diameter of shaft abutment
d1a (min.)
92
mm
Diameter of spacer sleeve abutment
Da (min.)
120
mm
Diameter of housing abutment
Da (max.)
123.5
mm
Diameter of housing abutment
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
1.63
kg
Mass approx.
