NSK NN3024K
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3024K

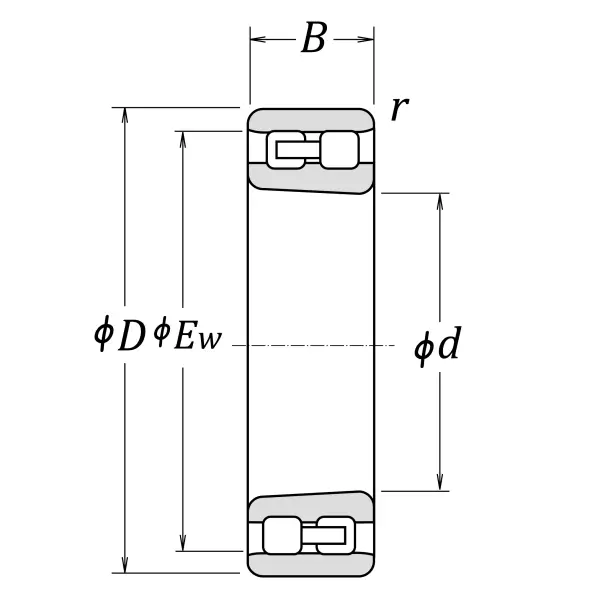

Boundary Dimensions
d
120
mm
Bore diameter
D
180
mm
Outside diameter
B
46
mm
Width
EW
165
mm
Raceway diameter of outer ring
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
294000
N
Basic dynamic load rating
C0r
405000
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
Oil (Oil-bath)
3800
min-1
Oil-bath lubrication
da (min.)
129
mm
Diameter of shaft abutment
d1a (min.)
131
mm
Diameter of spacer sleeve abutment
Da (min.)
167
mm
Diameter of housing abutment
Da (max.)
171
mm
Diameter of housing abutment
rb (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
4.04
kg
Mass approx.
