NSK NN3026
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3026

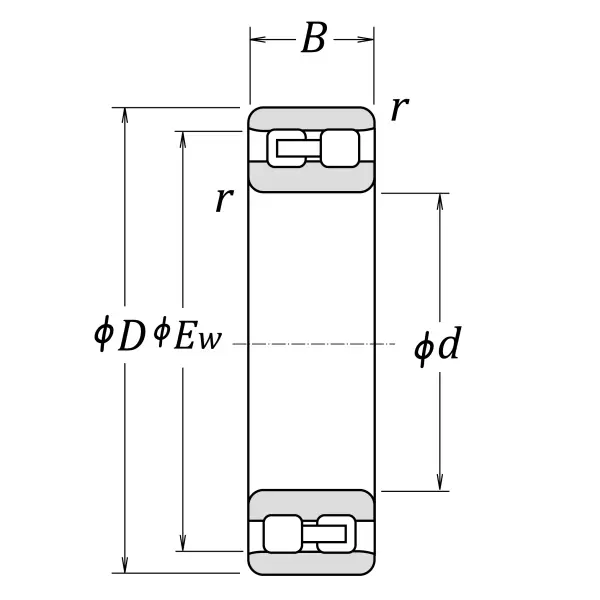

Boundary Dimensions
d
130
mm
Bore diameter
D
200
mm
Outside diameter
B
52
mm
Width
EW
182
mm
Raceway diameter of outer ring
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
350000
N
Basic dynamic load rating
C0r
475000
N
Basic static load rating
Speeds
Grease
3000
min-1
Grease lubrication
Oil (Oil-bath)
3600
min-1
Oil-bath lubrication

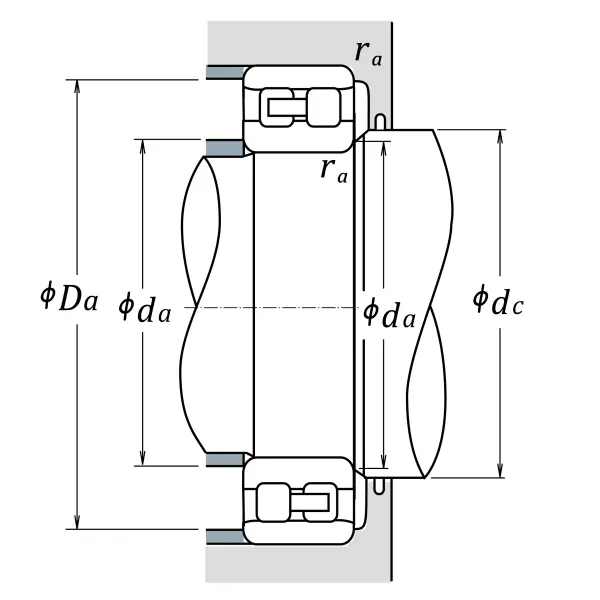

da (min.)
139
mm
Diameter of shaft abutment
d1a (min.)
141
mm
Diameter of spacer sleeve abutment
Da (min.)
185
mm
Diameter of housing abutment
Da (max.)
191
mm
Diameter of housing abutment
rb (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
5.88
kg
Mass approx.
