NSK NN3032
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3032

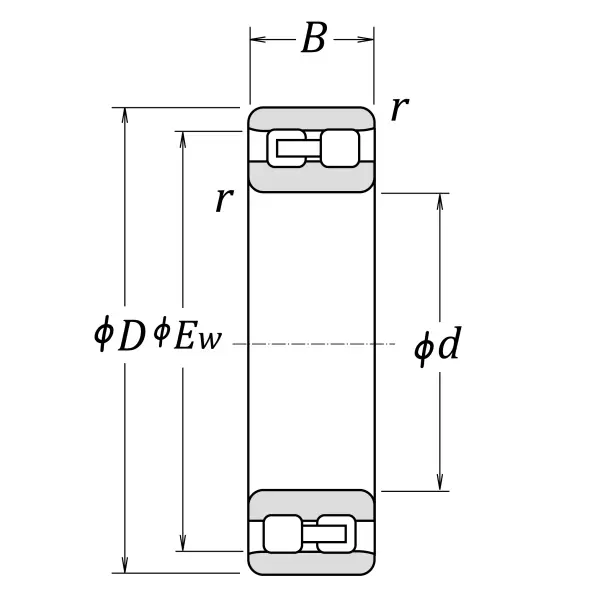

Boundary Dimensions
d
160
mm
Bore diameter
D
240
mm
Outside diameter
B
60
mm
Width
EW
219
mm
Raceway diameter of outer ring
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
460000
N
Basic dynamic load rating
C0r
660000
N
Basic static load rating
Speeds
Grease
2400
min-1
Grease lubrication
Oil (Oil-bath)
2800
min-1
Oil-bath lubrication
da (min.)
171
mm
Diameter of shaft abutment
d1a (min.)
172
mm
Diameter of spacer sleeve abutment
Da (min.)
222
mm
Diameter of housing abutment
Da (max.)
229
mm
Diameter of housing abutment
rb (max.)
2
mm
Radius of shaft or housing fillet

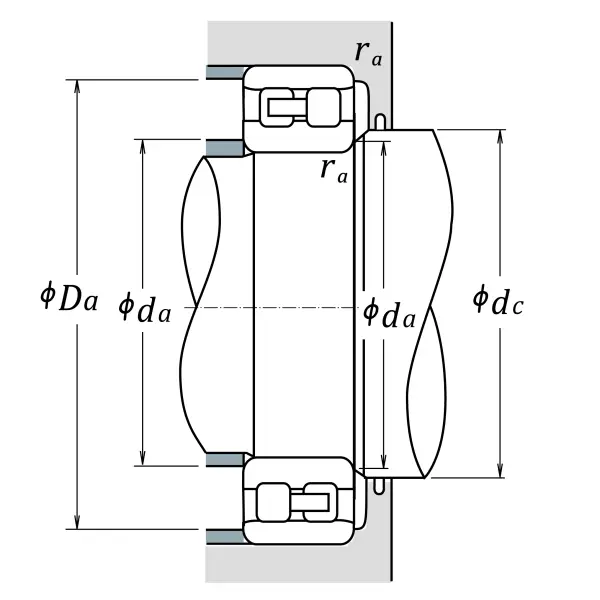

Abutment and Fillet Dimensions
Mass approx.
9.41
kg
Mass approx.
