NSK NN39/530K
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN39/530K

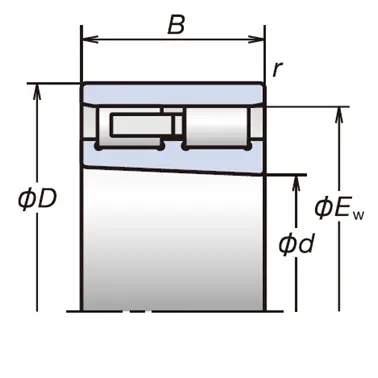

Boundary Dimensions
NN: Inner ring rib type
Bearing Type
d
530
mm
Bore diameter
D
710
mm
Outside diameter
B
136
mm
Width
r(min.)
5
mm
Chamfer Dimension
Basic Load Ratings
Cr
2040
kN
Basic Dynamic Load Rating
C0r
4900
kN
Basic Static Load Rating
Speeds
Grease
900
min-1
Limiting Speed
Oil (Oil-air)
1200
min-1
Limiting Speed
Dimensions
Ew
663
mm
Roller Circumscribed Circle Diameters
s
4.0
mm
Axial Displacement
Abutment and Fillet Dimensions
da(min.)
550
mm
Diameter of Shaft Abutment
d1a(min.)
561
mm
Diameter of Shaft Abutment
Da(min.)
668
mm
Diameter of Housing Abutment
Da(max.)
690
mm
Diameter of Housing Abutment
ra(max.)
4
mm
Radius of Shaft or Housing Fillet
