NSK NU1009
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NU1009
Boundary Dimensions
d
45
mm
Bore diameter
D
75
mm
Outside diameter
B
16
mm
Width
FW
52.5
mm
Raceway diameter of inner ring
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
40000
N
Basic dynamic load rating
C0r
35500
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
9500
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
9000
min-1
Grease lubrication
Oil (Oil-bath)
11000
min-1
Oil-bath lubrication

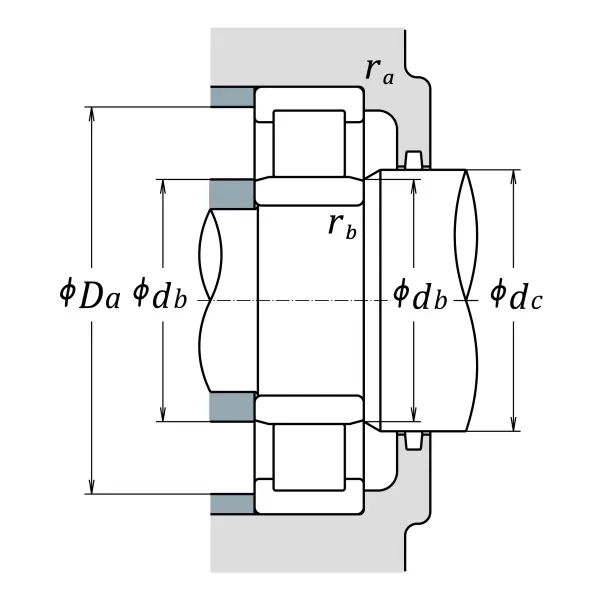

db (min.)
49
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
51
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
54
mm
Diameter of shaft abutment
Da (max.)
70
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
rb (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.279
kg
Mass approx.
