NSK NU1015
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NU1015
Boundary Dimensions
d
75
mm
Bore diameter
D
115
mm
Outside diameter
B
20
mm
Width
FW
85
mm
Raceway diameter of inner ring
r (min.)
1.1
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
74000
N
Basic dynamic load rating
C0r
74500
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
6000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
5600
min-1
Grease lubrication
Oil (Oil-bath)
6700
min-1
Oil-bath lubrication

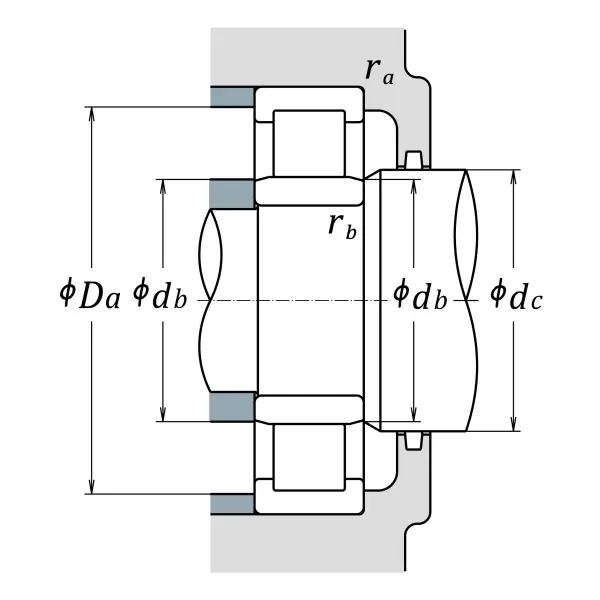

db (min.)
80
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
83
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
87
mm
Diameter of shaft abutment
Da (max.)
108.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.731
kg
Mass approx.
