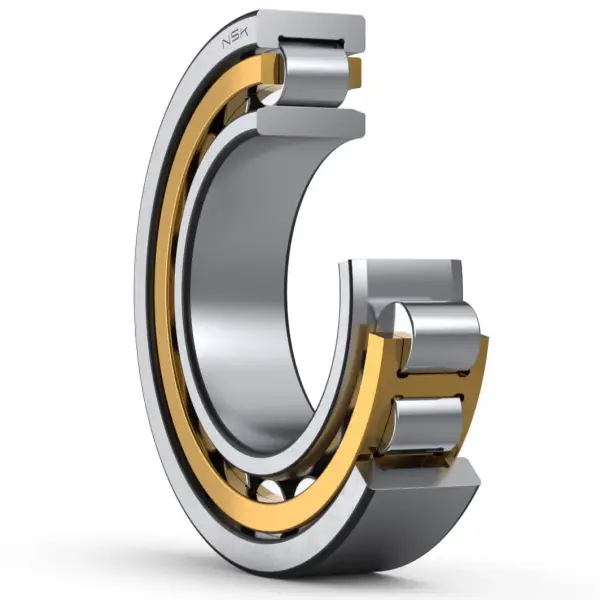

NSK NU2226EM
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NU2226EM
Boundary Dimensions
d
130
mm
Bore diameter
D
230
mm
Outside diameter
B
64
mm
Width
FW
153.5
mm
Raceway diameter of inner ring
r (min.)
3
mm
Chamfer dimension
r1 (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
650000
N
Basic dynamic load rating
C0r
735000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
3400
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
4500
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
2400
min-1
Grease lubrication
Oil (Oil-bath)
3000
min-1
Oil-bath lubrication

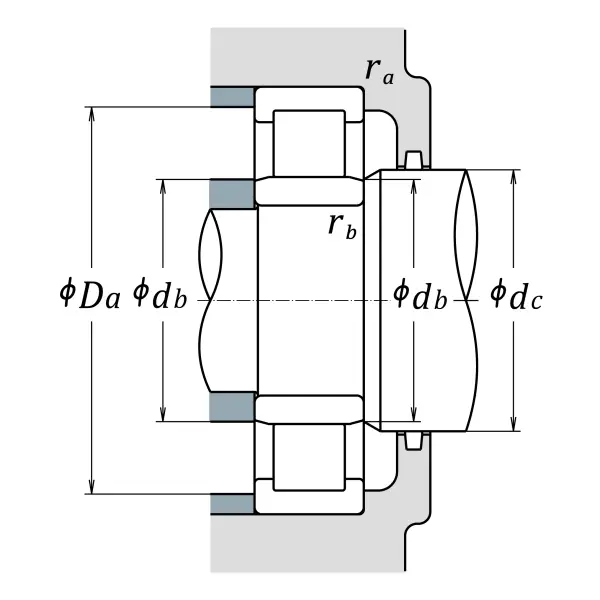

db (min.)
143
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
150
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
158
mm
Diameter of shaft abutment
Da (max.)
217
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
rb (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
11.7
kg
Mass approx.
