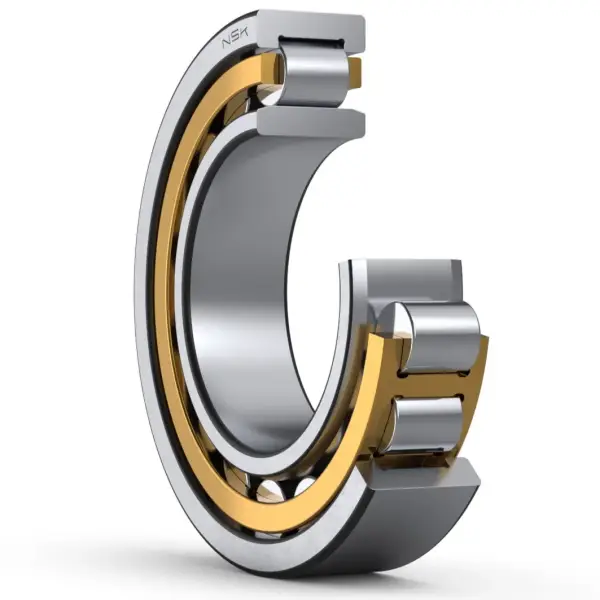

NSK NU307EM
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NU307EM
Boundary Dimensions
d
35
mm
Bore diameter
D
80
mm
Outside diameter
B
21
mm
Width
FW
46.2
mm
Raceway diameter of inner ring
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
82000
N
Basic dynamic load rating
C0r
65500
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
8500
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
15000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
7500
min-1
Grease lubrication
Oil (Oil-bath)
9500
min-1
Oil-bath lubrication

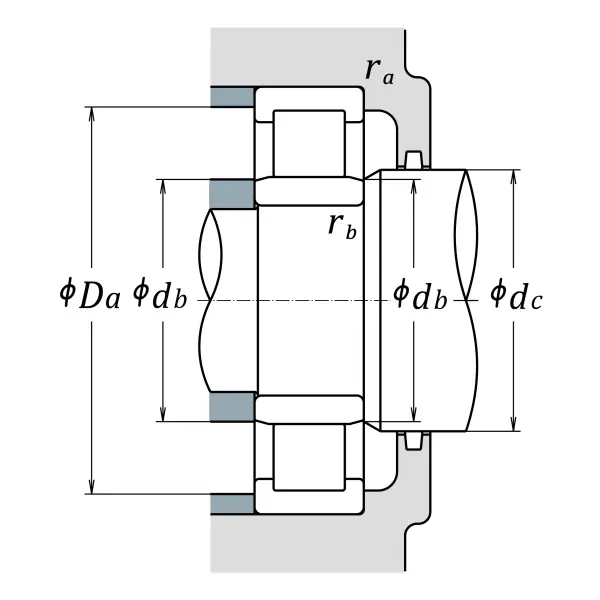

db (min.)
41.5
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
45
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
48
mm
Diameter of shaft abutment
Da (max.)
72
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.544
kg
Mass approx.
