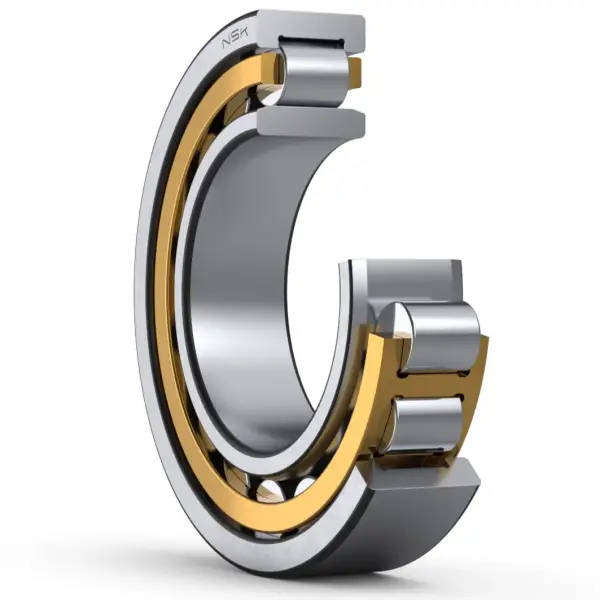

NSK NU332EM
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NU332EM
Boundary Dimensions
d
160
mm
Bore diameter
D
340
mm
Outside diameter
B
68
mm
Width
FW
204
mm
Raceway diameter of inner ring
r (min.)
4
mm
Chamfer dimension
r1 (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
1060000
N
Basic dynamic load rating
C0r
1050000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
1900
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
3600
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1700
min-1
Grease lubrication
Oil (Oil-bath)
2000
min-1
Oil-bath lubrication
db (min.)
176
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
199
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
211
mm
Diameter of shaft abutment
Da (max.)
324
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
rb (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
31.5
kg
Mass approx.
