NSK NU344M
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NU344M
Boundary Dimensions
d
220
mm
Bore diameter
D
460
mm
Outside diameter
B
88
mm
Width
FW
284
mm
Raceway diameter of inner ring
r (min.)
5
mm
Chamfer dimension
r1 (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Cr
1470000
N
Basic dynamic load rating
C0r
1570000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
1400
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1500
min-1
Oil-bath lubrication
db (min.)
240
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
278
mm
Diameter of shaft / spacer sleeve abutment
dc (min.)
287
mm
Diameter of shaft abutment
Da (max.)
440
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
rb (max.)
4
mm
Radius of shaft or housing fillet

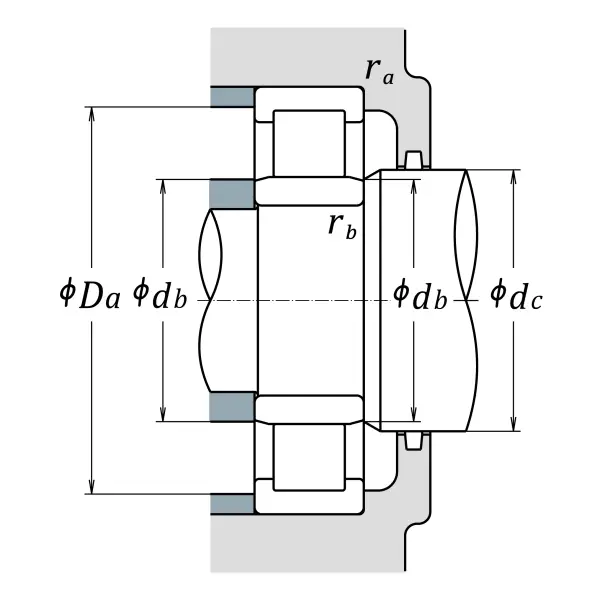

Abutment and Fillet Dimensions
Mass approx.
74.6
kg
Mass approx.
