NSK NUP1024
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NUP1024

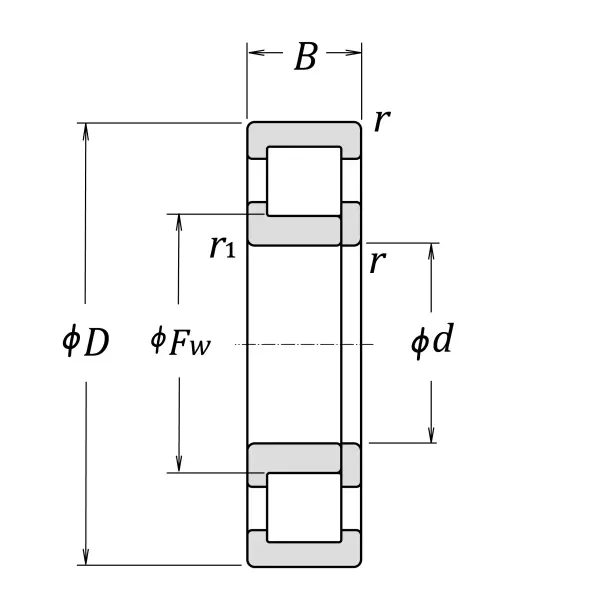

Boundary Dimensions
d
120
mm
Bore diameter
D
180
mm
Outside diameter
B
28
mm
Width
FW
135
mm
Raceway diameter of inner ring
r (min.)
2
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
171000
N
Basic dynamic load rating
C0r
191000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
4000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
3400
min-1
Grease lubrication
Oil (Oil-bath)
4300
min-1
Oil-bath lubrication

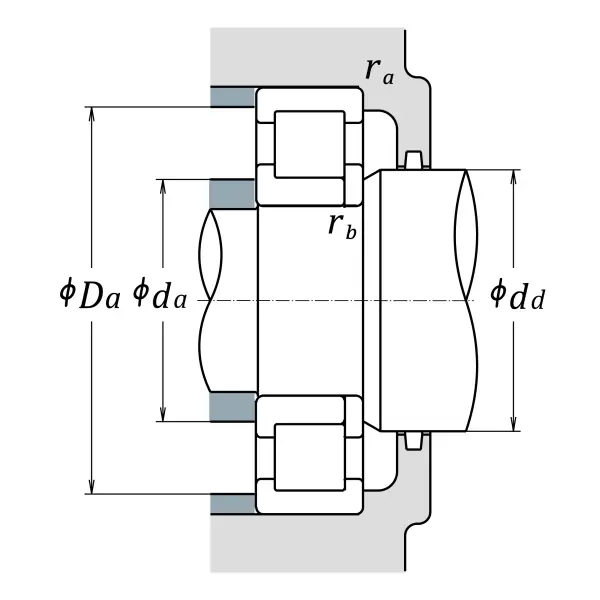

da (min.)
129
mm
Diameter of shaft abutment
Da (max.)
171
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
rb (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
2.57
kg
Mass approx.
