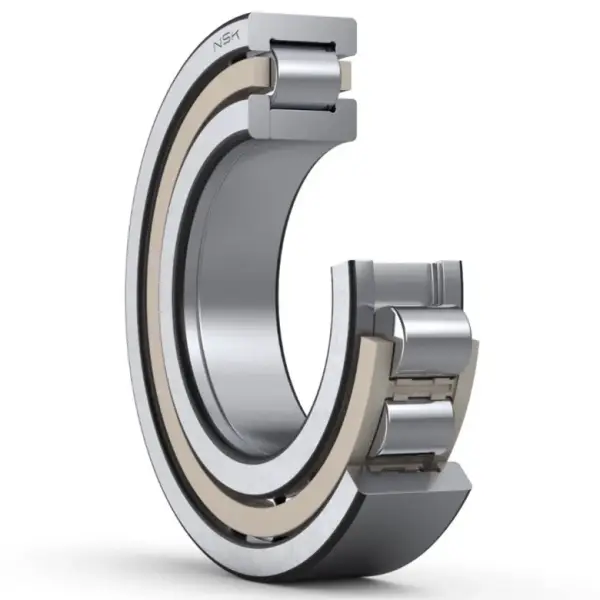

NSK NUP2205ET7
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NUP2205ET7

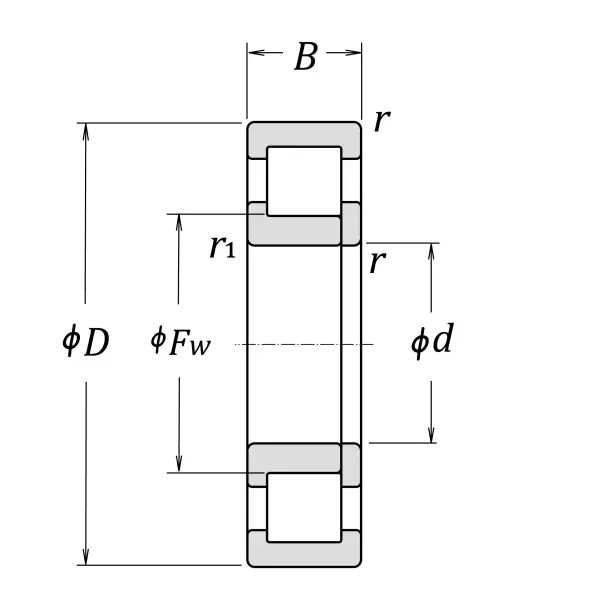

Boundary Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
B
18
mm
Width
FW
31.5
mm
Raceway diameter of inner ring
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
43000
N
Basic dynamic load rating
C0r
34500
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
14000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
17000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
12000
min-1
Grease lubrication
Oil (Oil-bath)
14000
min-1
Oil-bath lubrication

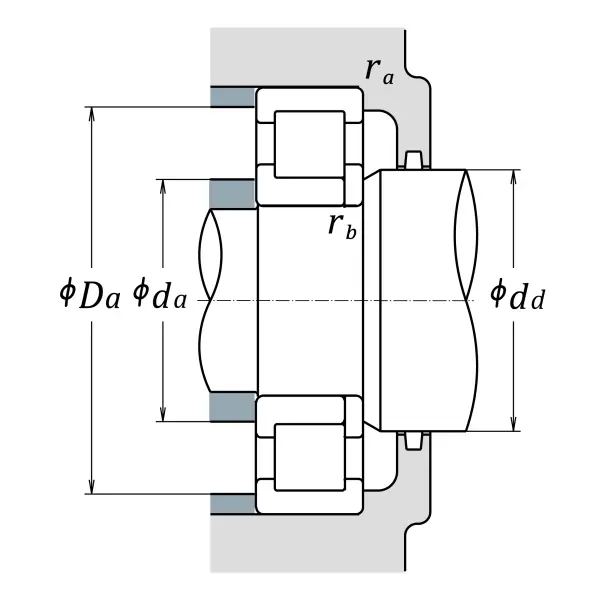

da (min.)
30
mm
Diameter of shaft abutment
dd (min.)
37
mm
Diameter of shaft abutment
Da (max.)
47
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
rb (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.17
kg
Mass approx.
