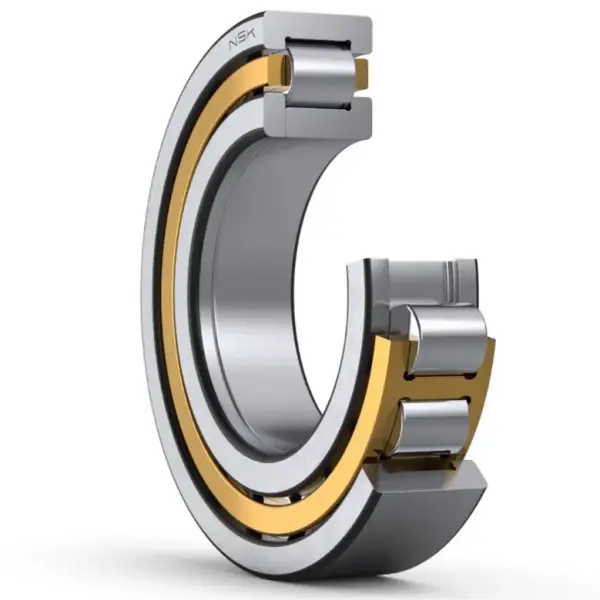

NSK NUP230EM
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NUP230EM
Boundary Dimensions
d
150
mm
Bore diameter
D
270
mm
Outside diameter
B
45
mm
Width
FW
182
mm
Raceway diameter of inner ring
r (min.)
3
mm
Chamfer dimension
r1 (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
550000
N
Basic dynamic load rating
C0r
595000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
4300
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
2800
min-1
Oil-bath lubrication

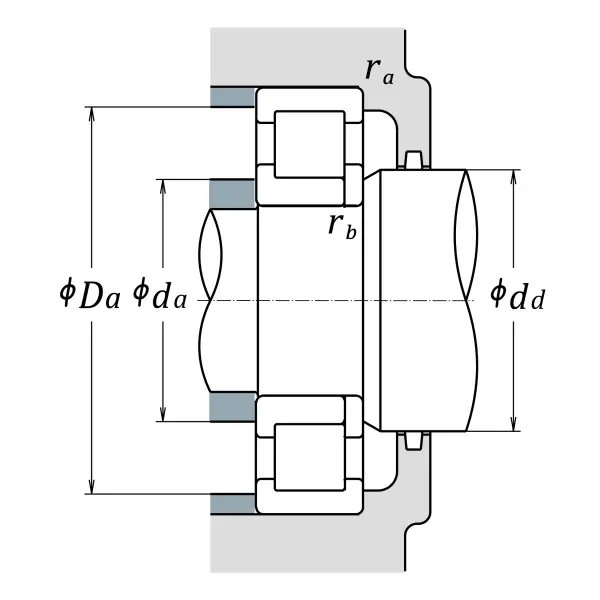

da (min.)
163
mm
Diameter of shaft abutment
dd (min.)
196
mm
Diameter of shaft abutment
Da (max.)
257
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
rb (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
12.1
kg
Mass approx.
