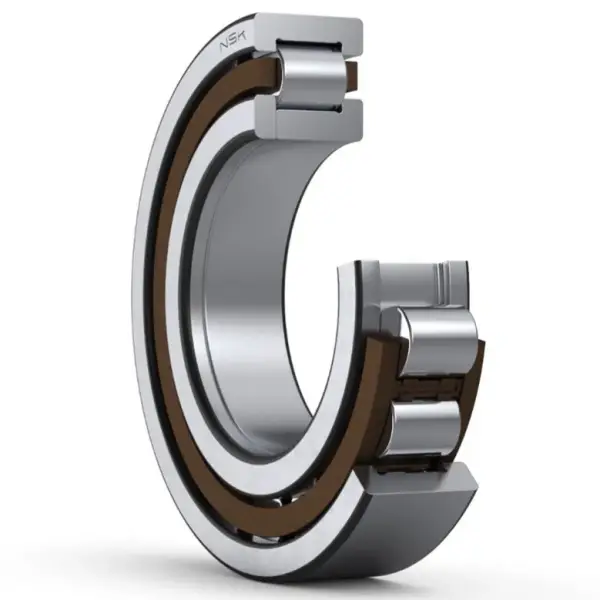

NSK NUP2319ET
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
NUP2319ET

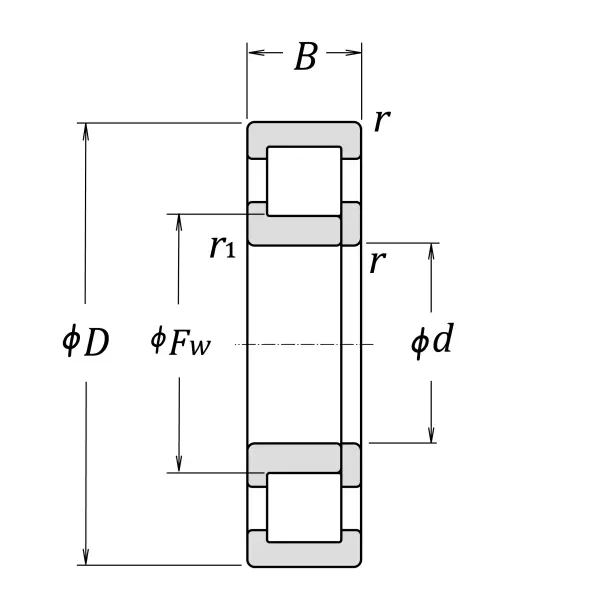

Boundary Dimensions
d
95
mm
Bore diameter
D
200
mm
Outside diameter
B
67
mm
Width
FW
121.5
mm
Raceway diameter of inner ring
r (min.)
3
mm
Chamfer dimension
r1 (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
565000
N
Basic dynamic load rating
C0r
585000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
3800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
2600
min-1
Grease lubrication
Oil (Oil-bath)
3400
min-1
Oil-bath lubrication

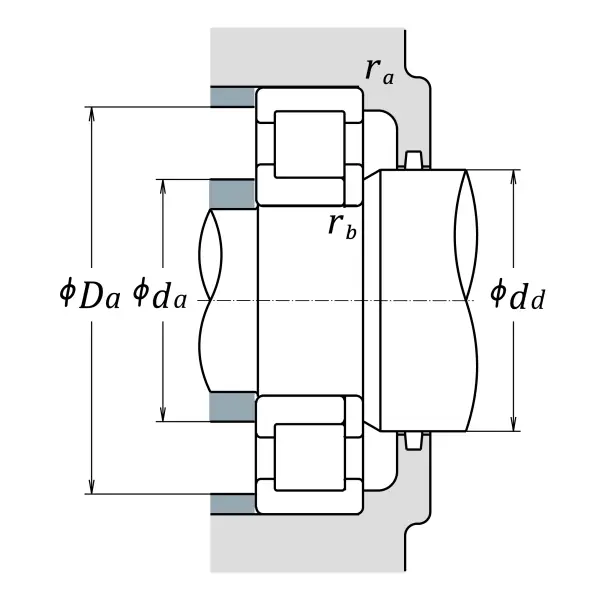

da (min.)
108
mm
Diameter of shaft abutment
dd (min.)
134
mm
Diameter of shaft abutment
Da (max.)
187
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
rb (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
9.66
kg
Mass approx.
