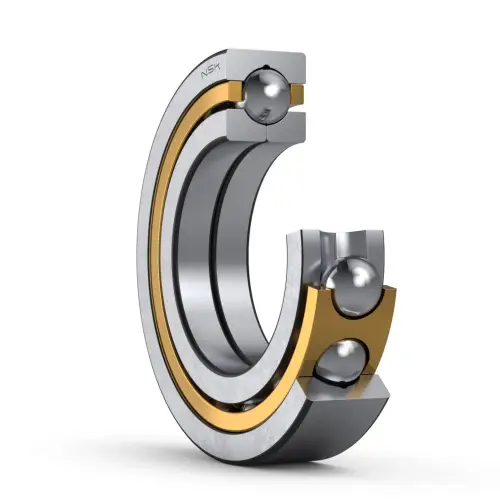

NSK QJ1028
Four-Point Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
QJ1028
Boundary Dimensions
d
140
mm
Bore diameter
D
210
mm
Outside diameter
B
33
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
190000
N
Basic dynamic load rating
C0a
435000
N
Basic static load rating
Speeds
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
3000
min-1
Oil-bath lubrication
a0
122.5
mm
Load center spacings

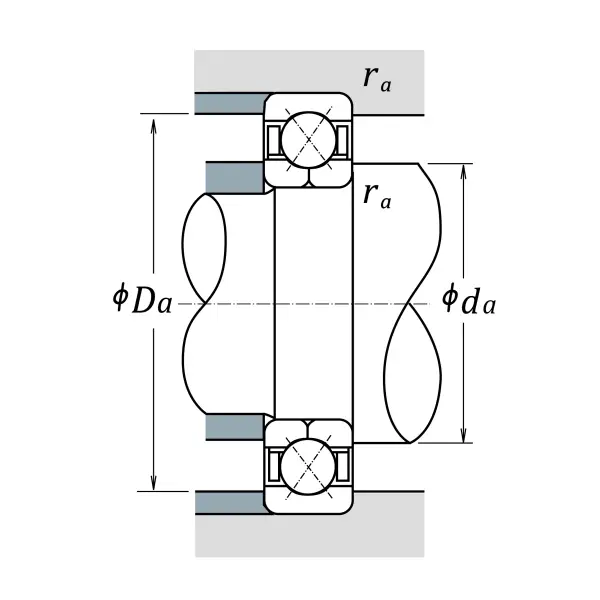

Dimensions
da (min.)
150
mm
Diameter of shaft abutment
Da (max.)
200
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
