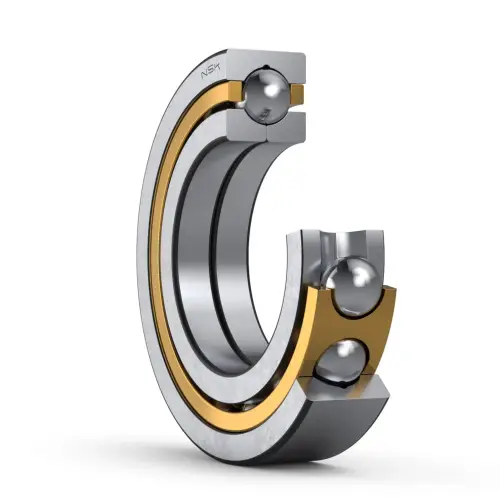

NSK QJ210
Four-Point Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
QJ210

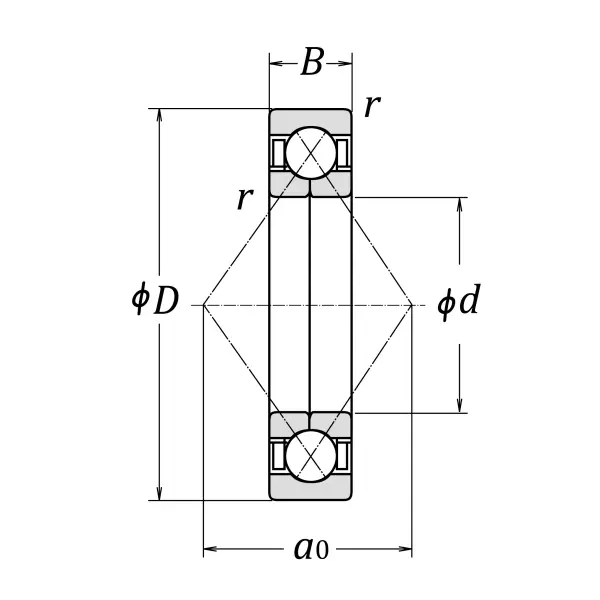

Boundary Dimensions
d
50
mm
Bore diameter
D
90
mm
Outside diameter
B
20
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
63000
N
Basic dynamic load rating
C0a
97000
N
Basic static load rating
Speeds
Grease
5600
min-1
Grease lubrication
Oil (Oil-bath)
8000
min-1
Oil-bath lubrication
a0
49
mm
Load center spacings

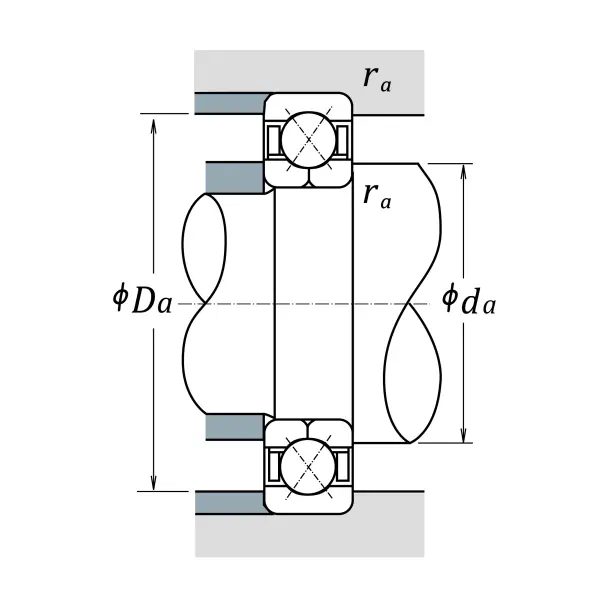

Dimensions
da (min.)
57
mm
Diameter of shaft abutment
Da (max.)
83
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
