NSK QJ215

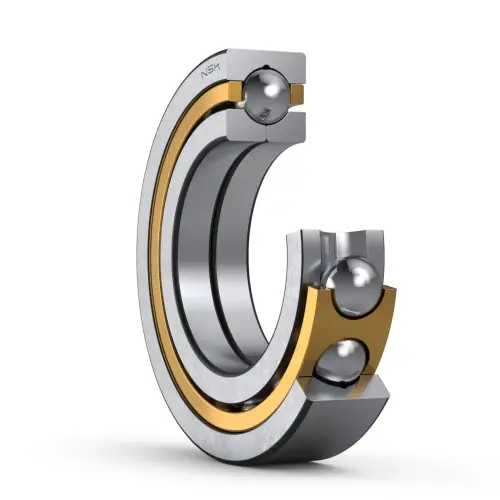

Four-Point Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
QJ215

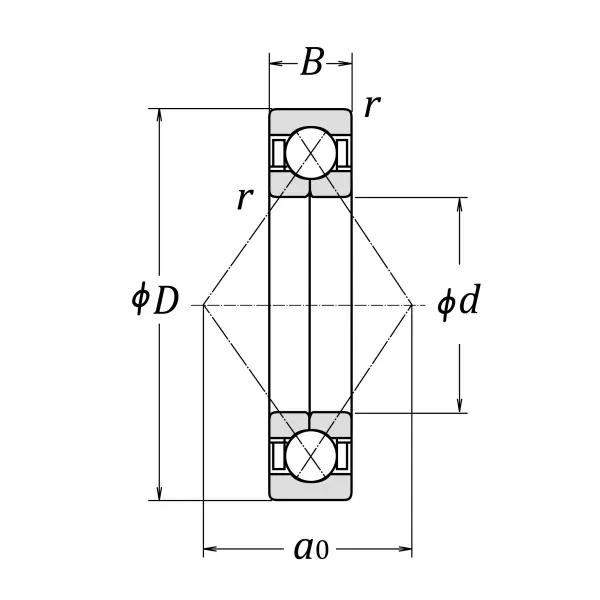

Boundary Dimensions
d
75
mm
Bore diameter
D
130
mm
Outside diameter
B
25
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Ca
121000
N
Basic dynamic load rating
C0a
212000
N
Basic static load rating
Speeds
Grease
3800
min-1
Grease lubrication
Oil (Oil-bath)
5300
min-1
Oil-bath lubrication
a0
71.8
mm
Load center spacings

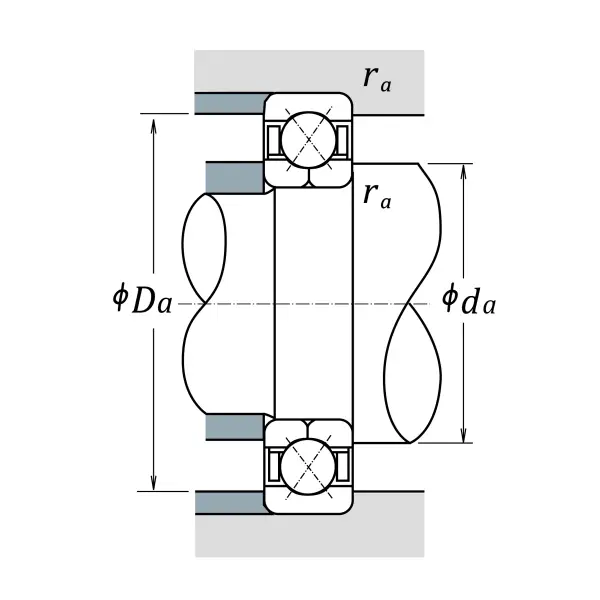

Dimensions
da (min.)
84
mm
Diameter of shaft abutment
Da (max.)
121
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
