NSK QJ218

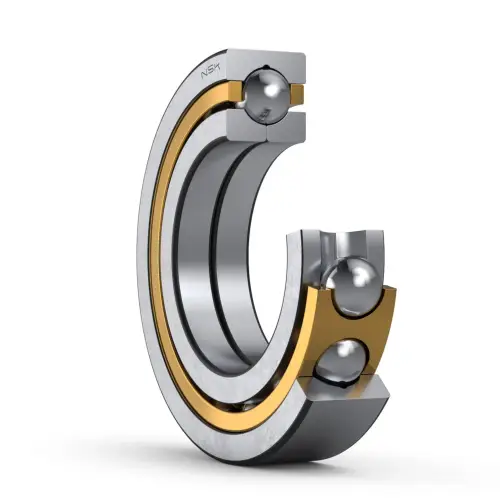

Four-Point Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
QJ218

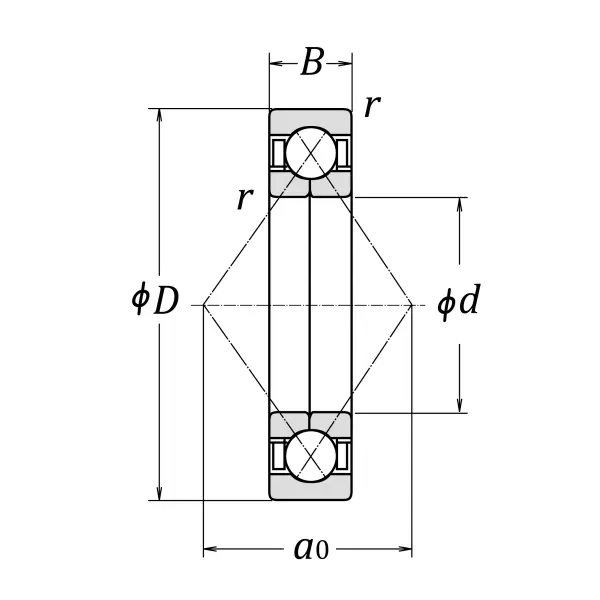

Boundary Dimensions
d
90
mm
Bore diameter
D
160
mm
Outside diameter
B
30
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
180000
N
Basic dynamic load rating
C0a
320000
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
Oil (Oil-bath)
4300
min-1
Oil-bath lubrication
a0
87.5
mm
Load center spacings

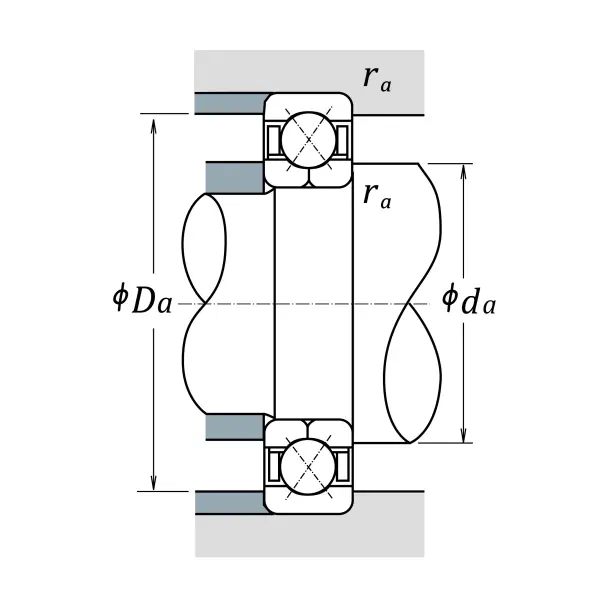

Dimensions
da (min.)
100
mm
Diameter of shaft abutment
Da (max.)
150
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
