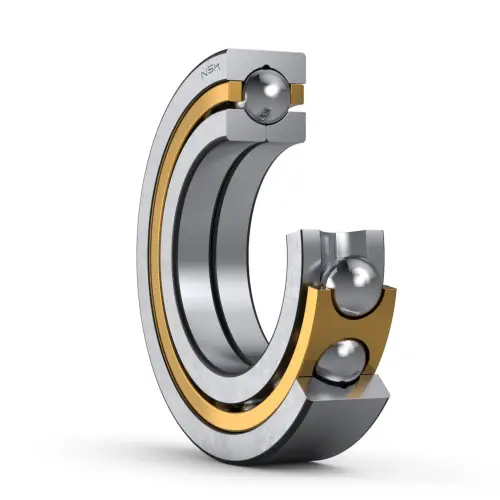

NSK QJ310
Four-Point Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
QJ310

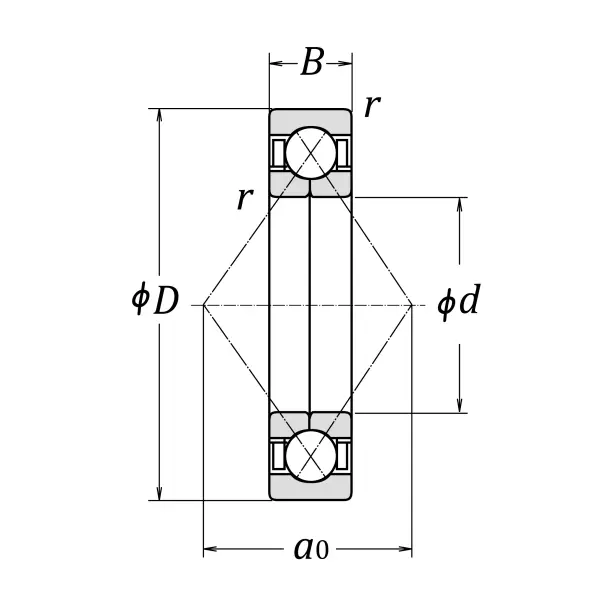

Boundary Dimensions
d
50
mm
Bore diameter
D
110
mm
Outside diameter
B
27
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
112000
N
Basic dynamic load rating
C0a
159000
N
Basic static load rating
Speeds
Grease
5000
min-1
Grease lubrication
Oil (Oil-bath)
6700
min-1
Oil-bath lubrication
a0
56
mm
Load center spacings

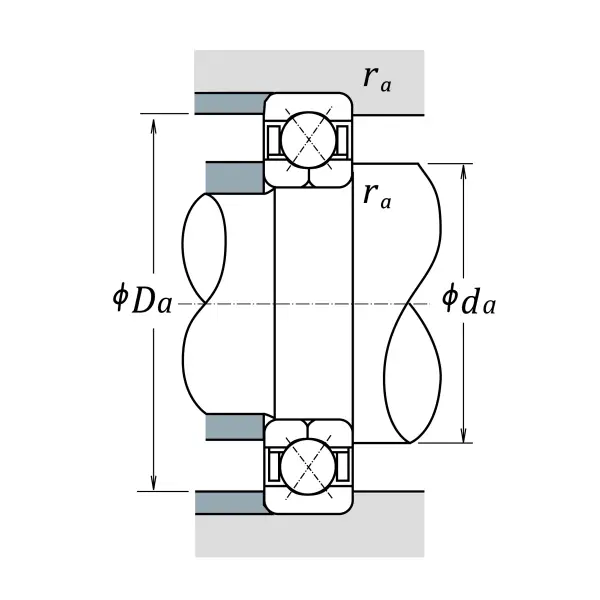

Dimensions
da (min.)
60
mm
Diameter of shaft abutment
Da (max.)
100
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
