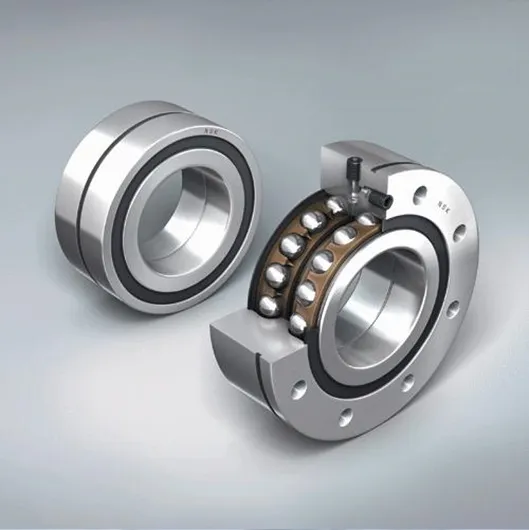

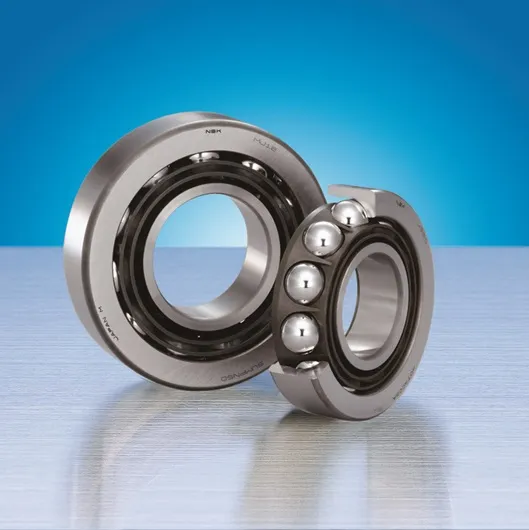

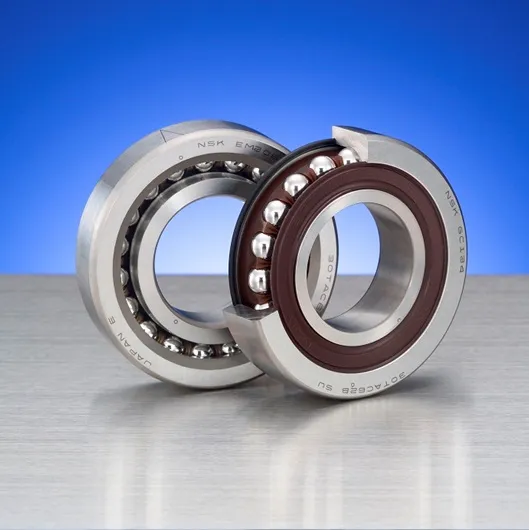

**Introduction to NSK Super Precision Angular Contact Thrust Ball Bearings for Ball Screw Support**
In high-precision motion control systems, the performance and reliability of ball screw assemblies are critical to achieving exceptional accuracy, rigidity, and longevity. NSK’s **Super Precision Angular Contact Thrust Ball Bearings** are engineered specifically for ball screw support applications, delivering unmatched precision, load capacity, and operational efficiency. These bearings are designed to meet the rigorous demands of advanced industrial machinery, automotive systems, and precision equipment where minimal friction, high stiffness, and repeatable motion are essential.
### **Technical Features & Design Excellence**
NSK’s Super Precision Angular Contact Thrust Ball Bearings incorporate several advanced design features to optimize performance in ball screw support applications:
– **High-Precision Raceway Geometry**: Manufactured to ultra-tight tolerances (ABEC 7/P4 or higher), these bearings ensure smooth, low-vibration rotation, minimizing axial runout and enhancing positional accuracy.
– **Optimized Contact Angle (60°)**: The steep contact angle maximizes axial load capacity while maintaining radial stiffness, making them ideal for applications with high thrust forces, such as CNC machine tool feed systems.
– **Specialized Cage Designs**: Options include lightweight phenolic resin cages for reduced inertia and high-speed capability, or robust steel cages for heavy-load applications.
– **Premium Steel & Lubrication**: Manufactured from high-grade bearing steel with advanced heat treatment, these bearings resist wear and fatigue. Optional grease or oil lubrication configurations further extend service life in demanding conditions.
### **Performance Advantages**
By integrating NSK’s Super Precision Angular Contact Thrust Ball Bearings into ball screw supports, engineers benefit from:
– **Enhanced Rigidity & Accuracy**: The bearings’ high stiffness minimizes elastic deformation under load, ensuring consistent precision in linear motion systems.
– **Extended Service Life**: Reduced friction and optimized internal stress distribution contribute to longer bearing life, even in high-load, high-speed environments.
– **Superior Speed Capability**: Precision-balanced components and optimized internal geometry allow for higher rotational speeds without compromising stability.
– **Reduced Energy Consumption**: Low torque characteristics improve efficiency, reducing power requirements in servo-driven applications.
### **Typical Applications**
These bearings are indispensable in industries where precision motion control is critical:
– **Industrial Machinery**: CNC machining centers, grinding machines, and robotics rely on these bearings for precise axial positioning and repeatability.
– **Automotive Systems**: Electric power steering (EPS) and automated manufacturing equipment use them to ensure smooth, backlash-free motion.
– **Semiconductor & Medical Equipment**: High-precision stages, wafer handlers, and imaging systems depend on their accuracy and low vibration.
NSK’s Super Precision Angular Contact Thrust Ball Bearings represent the pinnacle of ball screw support technology, combining rigorous engineering with proven reliability. Whether in high-speed automation or ultra-precision instrumentation, these bearings deliver the performance needed to push the boundaries of motion control.
