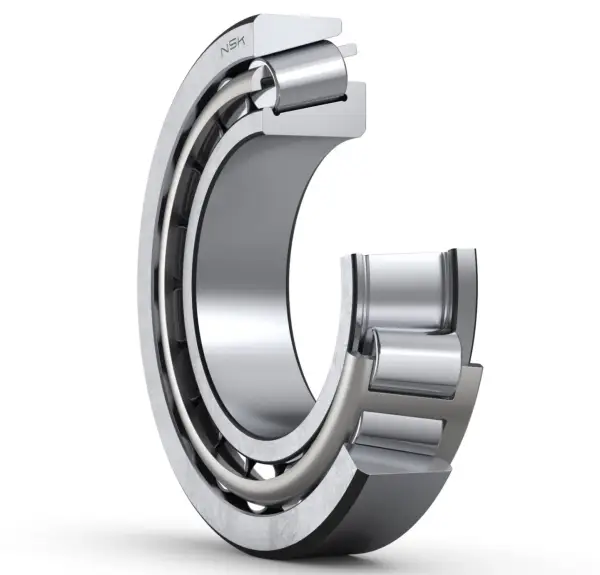

NSK T7FC060
Metric Series Tapered Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
T7FC060
Dimension series
ISO
7FC
ISO355 dimension series approx.

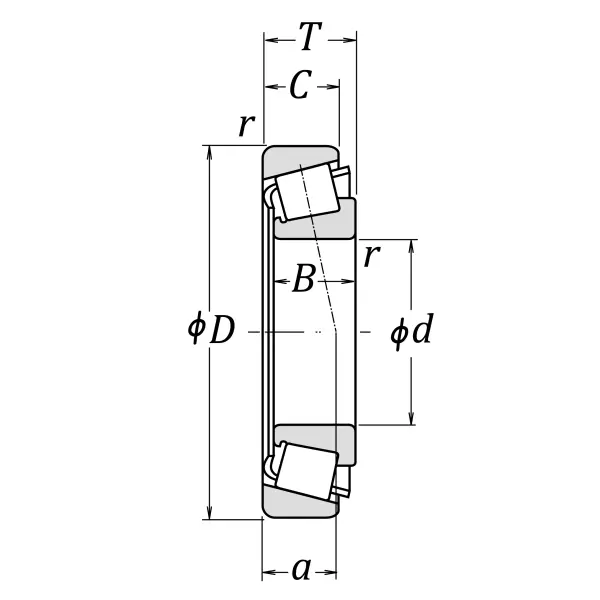

Boundary Dimensions
d
60
mm
Bore diameter
D
125
mm
Outside diameter
T
37
mm
Total width
B
33.5
mm
Width of inner ring
C
26
mm
Width of outer ring
Cup r (min.)
3
mm
Chamfer dimension of outer ring (Cup)
Cone r (min.)
3
mm
Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr
186000
N
Basic dynamic load rating
C0r
197000
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3800
min-1
Oil-bath lubrication
a
41.3
mm
Effective load center
