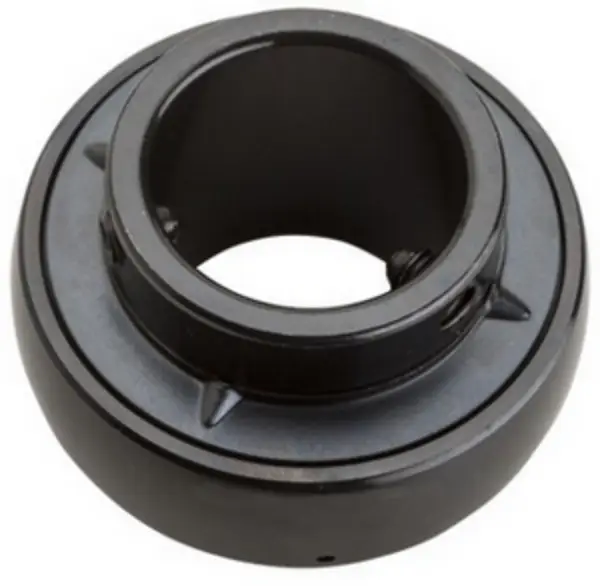

NSK UC204-012D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC204-012D1
Included products
Bearing

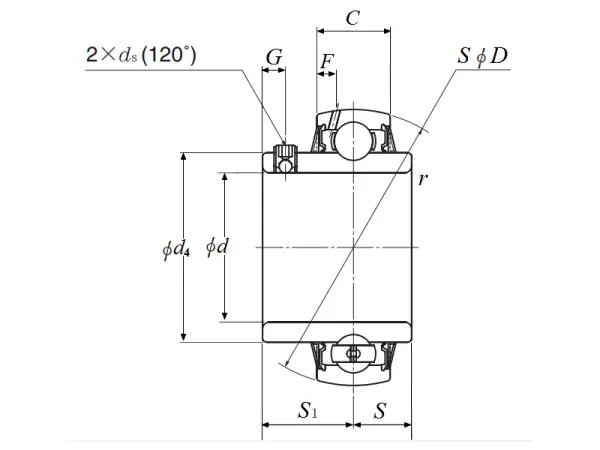

Nominal Dimensions
d
19.05
mm
Bore diameter
D
47
mm
Outside diameter
B,B4
31
mm
Width of inner ring
C
17
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
S1
18.3
mm
Distance from locking device side face to raceway centre
G
4.5
mm
Distance face to thread centre
ds
No.10-32UNF
Set screw
Ca
3.8
mm
Distance from oil hole centre to raceway centre
d4
29.6
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
Mass approx.
0.18
kg
Mass approx.
