NSK UC205-013D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC205-013D1
Included products
Bearing

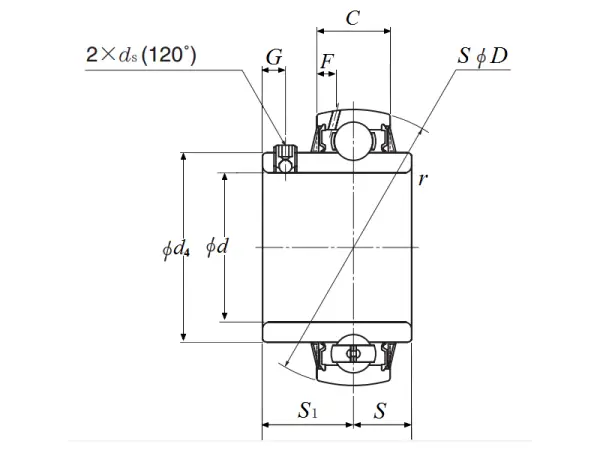

Nominal Dimensions
d
20.638
mm
Bore diameter
D
52
mm
Outside diameter
B,B4
34.1
mm
Width of inner ring
C
17
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
S1
19.8
mm
Distance from locking device side face to raceway centre
G
5
mm
Distance face to thread centre
ds
No.10-32UNF
Set screw
Ca
4
mm
Distance from oil hole centre to raceway centre
d4
33.9
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
Mass approx.
0.24
kg
Mass approx.
