NSK UC210-113D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC210-113D1
Included products
Bearing

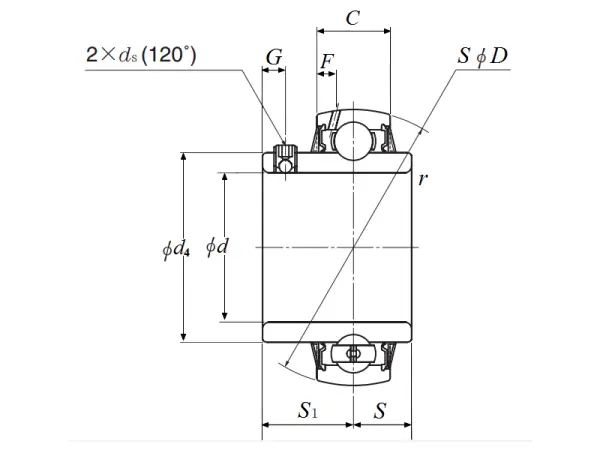

Nominal Dimensions
d
46.038
mm
Bore diameter
D
90
mm
Outside diameter
B,B4
51.6
mm
Width of inner ring
C
24
mm
Outer ring width
r(min.)
1.5
mm
Chamfer dimension
S1
32.6
mm
Distance from locking device side face to raceway centre
G
9
mm
Distance face to thread centre
ds
5／16-24UNF
Set screw
Ca
6.1
mm
Distance from oil hole centre to raceway centre
d4
62.4
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
Mass approx.
0.9
kg
Mass approx.
