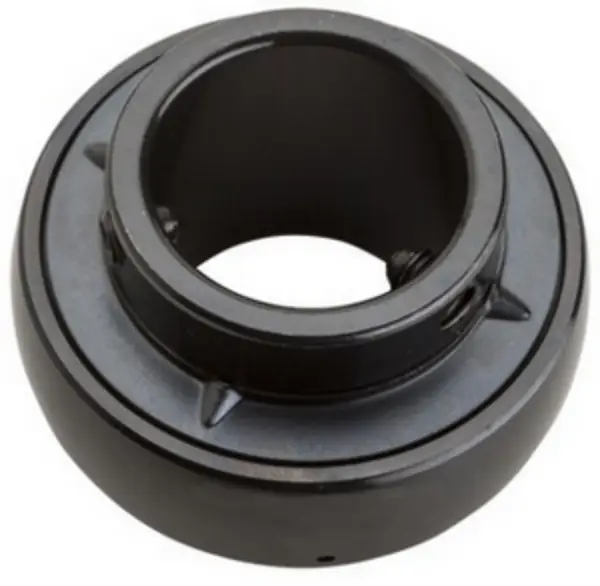

NSK UC212-207D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC212-207D1
Included products
Bearing

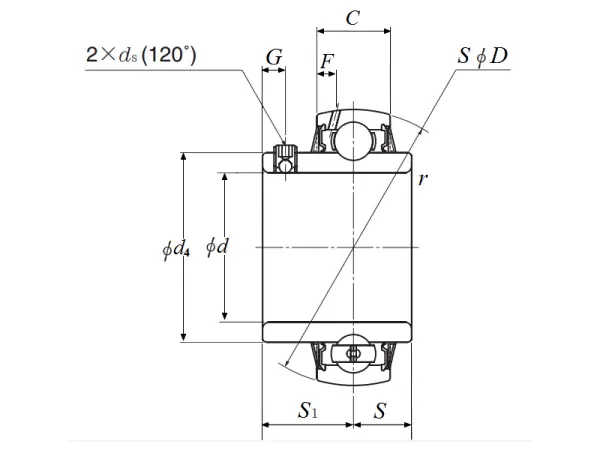

Nominal Dimensions
d
61.912
mm
Bore diameter
D
110
mm
Outside diameter
B,B4
65.1
mm
Width of inner ring
C
27
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
S1
39.7
mm
Distance from locking device side face to raceway centre
G
10
mm
Distance face to thread centre
ds
3／8-27UNF
Set screw
Ca
7.3
mm
Distance from oil hole centre to raceway centre
d4
77
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
Mass approx.
1.37
kg
Mass approx.
