NSK UC213D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC213D1
Included products
Bearing

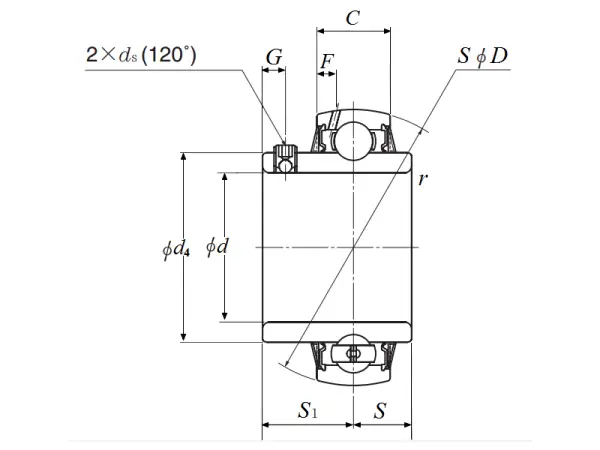

Nominal Dimensions
d
65
mm
Bore diameter
D
120
mm
Outside diameter
B,B4
65.1
mm
Width of inner ring
C
32
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
S1
39.7
mm
Distance from locking device side face to raceway centre
G
10
mm
Distance face to thread centre
ds
M10×1.25
Set screw
Ca
7.3
mm
Distance from oil hole centre to raceway centre
d4
82.5
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
57.5
kN
Basic dynamic load rating
C0r
40
kN
Basic static load rating
Mass
Mass approx.
1.86
kg
Mass approx.
