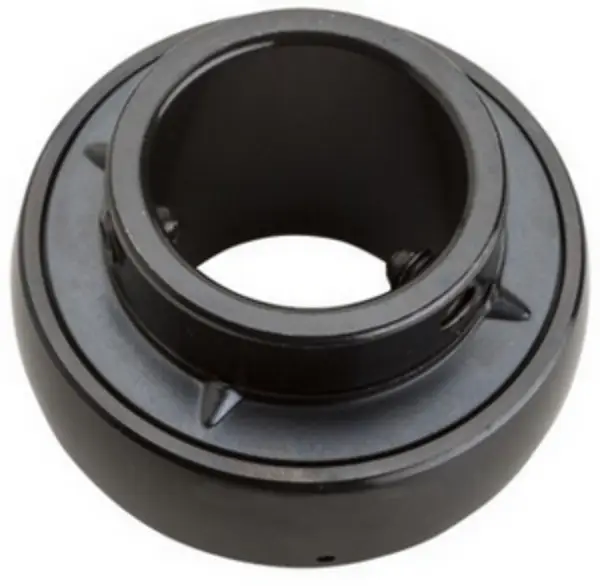

NSK UC215-215D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC215-215D1
Included products
Bearing
Nominal Dimensions
d
74.612
mm
Bore diameter
D
130
mm
Outside diameter
B,B4
77.8
mm
Width of inner ring
C
34
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
S1
44.5
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
3／8-24UNF
Set screw
Ca
8
mm
Distance from oil hole centre to raceway centre
d4
93
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
66
kN
Basic dynamic load rating
C0r
49.5
kN
Basic static load rating
Mass
Mass approx.
2.37
kg
Mass approx.
