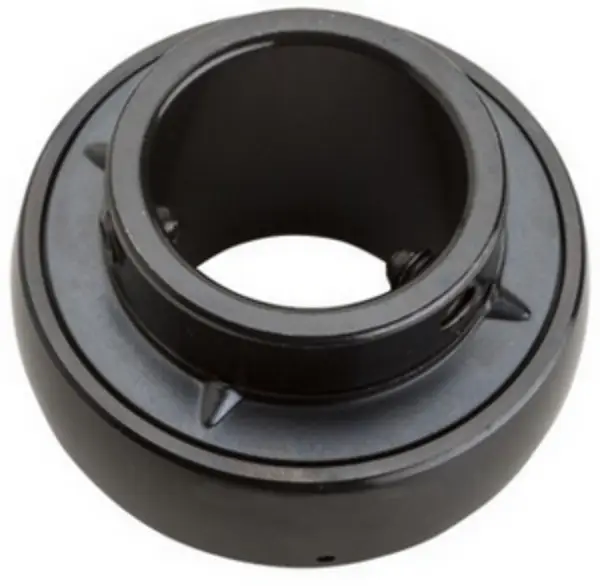

NSK UC307-107D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC307-107D1
Included products
Bearing

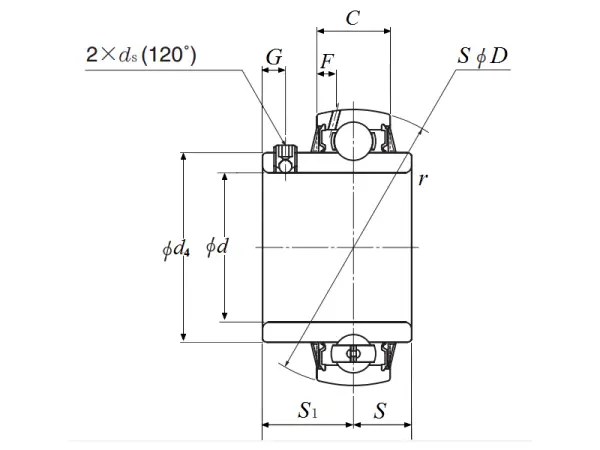

Nominal Dimensions
d
36.512
mm
Bore diameter
D
80
mm
Outside diameter
B,B4
48
mm
Width of inner ring
C
25
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
S1
29
mm
Distance from locking device side face to raceway centre
G
8
mm
Distance face to thread centre
ds
5／16-27UNF
Set screw
Ca
5.7
mm
Distance from oil hole centre to raceway centre
d4
49.4
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
33.5
kN
Basic dynamic load rating
C0r
19.1
kN
Basic static load rating
Mass
Mass approx.
0.67
kg
Mass approx.
