NSK UC312-206D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC312-206D1
Included products
Bearing

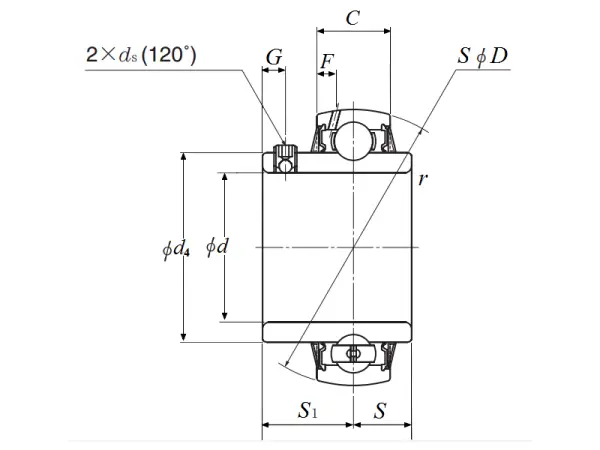

Nominal Dimensions
d
60.325
mm
Bore diameter
D
130
mm
Outside diameter
B,B4
71
mm
Width of inner ring
C
36
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
S1
45
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
1／2-21UNF
Set screw
Ca
9
mm
Distance from oil hole centre to raceway centre
d4
82.7
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
Mass
Mass approx.
2.58
kg
Mass approx.
