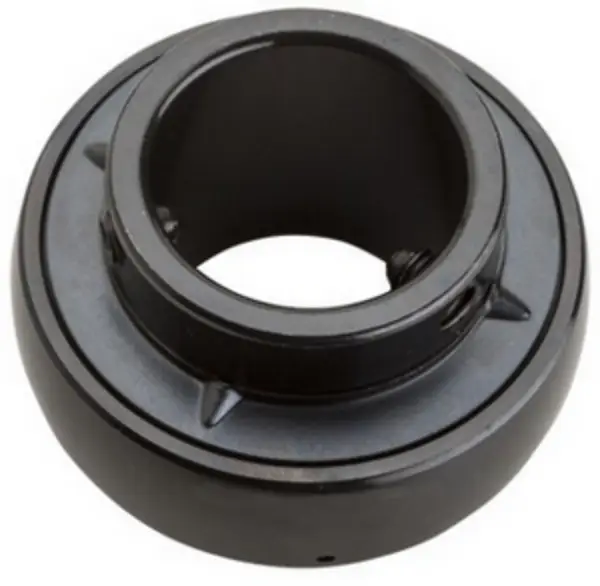

NSK UC313-208D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC313-208D1
Included products
Bearing

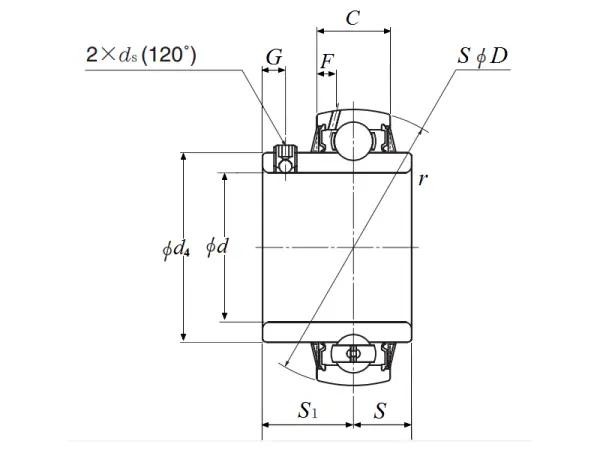

Nominal Dimensions
d
63.5
mm
Bore diameter
D
140
mm
Outside diameter
B,B4
75
mm
Width of inner ring
C
39
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
S1
45
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
1／2-20UNF
Set screw
Ca
9.4
mm
Distance from oil hole centre to raceway centre
d4
88.2
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
92.5
kN
Basic dynamic load rating
C0r
60
kN
Basic static load rating
Mass
Mass approx.
3.34
kg
Mass approx.
