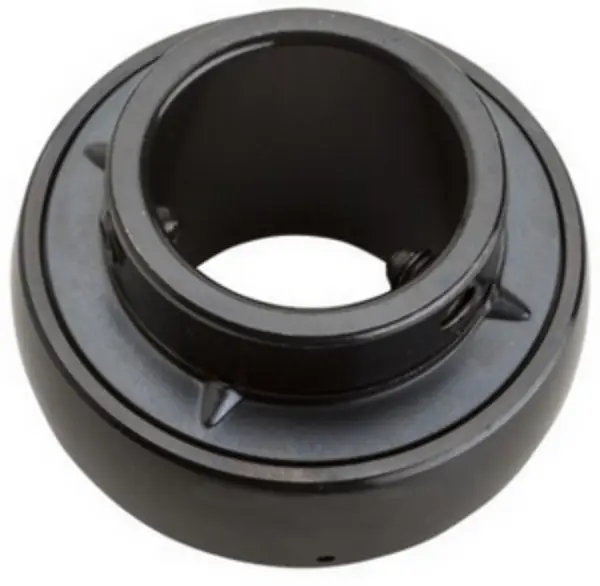

NSK UC315-300D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC315-300D1
Included products
Bearing
Nominal Dimensions
d
76.2
mm
Bore diameter
D
160
mm
Outside diameter
B,B4
82
mm
Width of inner ring
C
43
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
S1
50
mm
Distance from locking device side face to raceway centre
G
14
mm
Distance face to thread centre
ds
9／16-19UNF
Set screw
Ca
10.5
mm
Distance from oil hole centre to raceway centre
d4
101.3
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
Mass
Mass approx.
4.61
kg
Mass approx.
