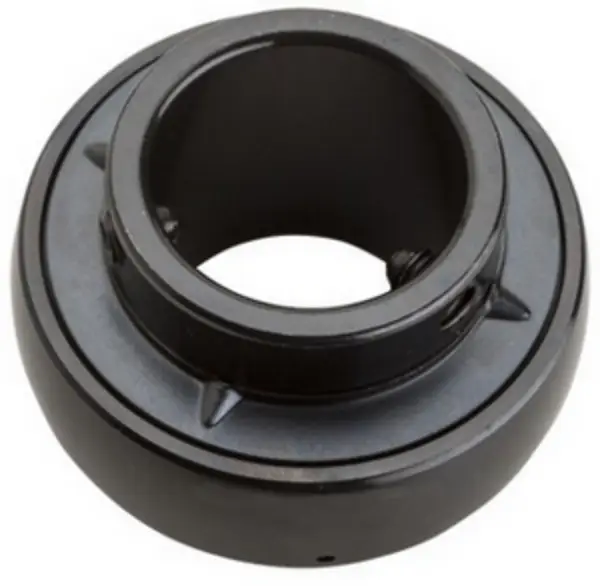

NSK UC320-315D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UC320-315D1
Included products
Bearing

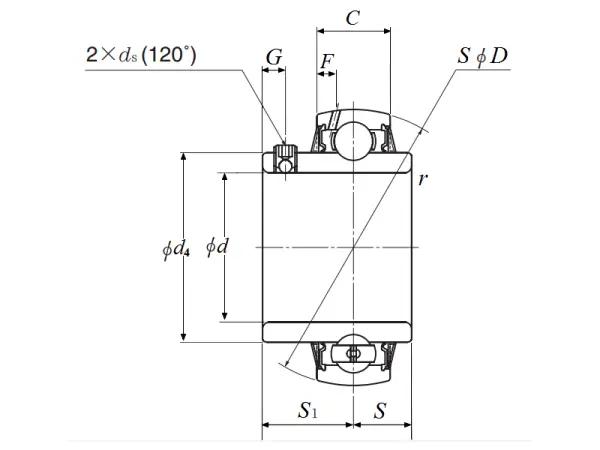

Nominal Dimensions
d
100.012
mm
Bore diameter
D
215
mm
Outside diameter
B,B4
108
mm
Width of inner ring
C
55
mm
Outer ring width
r(min.)
3
mm
Chamfer dimension
S1
66
mm
Distance from locking device side face to raceway centre
G
18
mm
Distance face to thread centre
ds
5／8-18UNF
Set screw
Ca
14
mm
Distance from oil hole centre to raceway centre
d4
135.6
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
Mass
Mass approx.
10.8
kg
Mass approx.
