NSK UCC328D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCC328D1
Included products
Bearing
Housing
C328D1
Housing

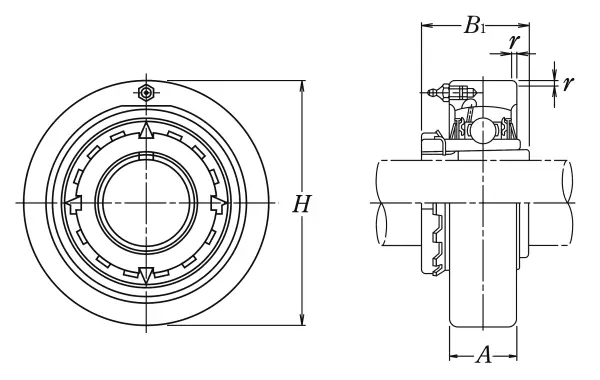

Nominal Dimensions
d
140
mm
Bore diameter
A
100
mm
Base width
r
5
mm
Housing Chamfer dimension
H
360
mm
Outer diameter
B,B1
145
mm
Width of inner ring
B
145
mm
Width of inner ring
S
59
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
253
kN
Basic dynamic load rating
C0r
246
kN
Basic static load rating
Mass
mass
50
kg
Mass approx.
