NSK UCFA205D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFA205D1
Included products
Bearing
Housing
FA205D1
Housing

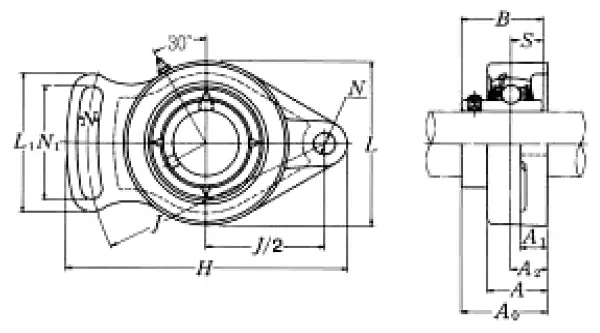

Nominal Dimensions
d
25
mm
Bore diameter
N1
49
mm
Length of attachment bolt hole
L,L1
70
mm
Overall height
J
96
mm
Distance between attachment bolts
N
13
mm
Diameter of attachment bolt hole
A2
15
mm
Flange width
A1
14
mm
Flange width
A
26.5
mm
Base width
A0
34.8
mm
Overall width
B,B1,B2
34.1
mm
Width of inner ring
H
124
mm
Overall length
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
L1
64
mm
Foot width
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.7
kg
Mass approx.
