NSK UCFA207D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFA207D1
Included products
Bearing
Housing
FA207D1
Housing

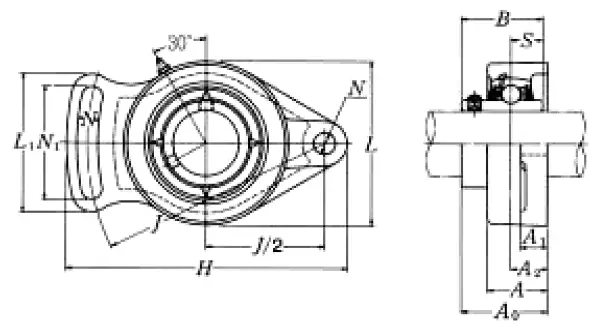

Nominal Dimensions
d
35
mm
Bore diameter
N1
60
mm
Length of attachment bolt hole
L,L1
90
mm
Overall height
J
128
mm
Distance between attachment bolts
N
15
mm
Diameter of attachment bolt hole
A2
20
mm
Flange width
A1
16
mm
Flange width
A
34
mm
Base width
A0
45.4
mm
Overall width
B,B1,B2
42.9
mm
Width of inner ring
H
155
mm
Overall length
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
L1
75
mm
Foot width
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
